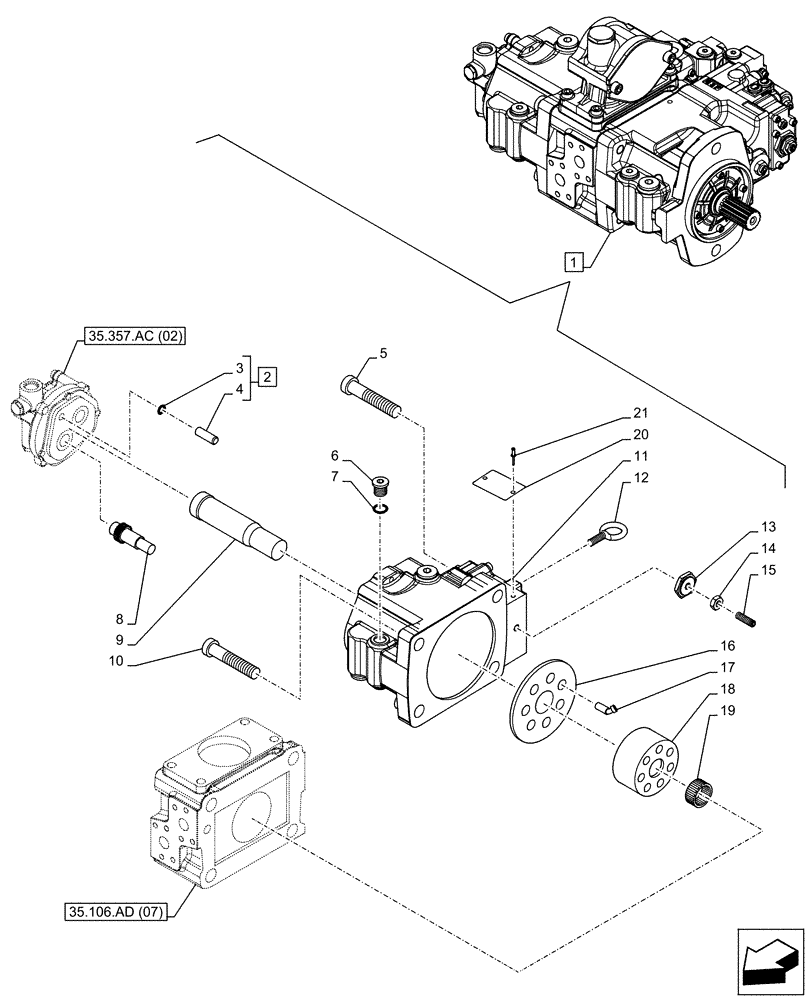

Запчасти Case CX130D LC (35.106.AD[06]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPRTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KNJ21980

HYDRAULIC PUMP

ASSY, Incl 2 - 21

1шт.

See also Figure 35.106.AD(05), 35.106.AD(07), 35.106.AD(08), 35.106.AN(01), 35.106.AN(02), 35.357.AC(02)

1шт.

2

LA013930

LOCK PIN

ASSY, Incl 3 - 4

2шт.

3

LE026250

O-RING

2шт.

4

LA013970

PIN

2шт.

5

LA011200

BOLT,Hex Skt Hd

2шт.

6

LK00008

PLUG

2шт.

7

LE013490

O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

2шт.

9

LB012060

SHAFT

1шт.

10

LA011190

BOLT,Hex Skt Hd

2шт.

11

LW007410

HOUSING

1шт.

12

LA016830

EYEBOLT

2шт.

13

LA016770

NUT

2шт.

14

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

2шт.

15

TV00002

SCREW

2шт.

16

LR015680

PLATE

2шт.

17

LJ015060

PISTON

2шт.

18

LJ015080

BARREL

1шт.

19

LB012030

NEEDLE BEARING

2шт.

20

NSS

NOT SOLD SEPARAT

Nameplate, Incl in 1

1шт.

21

LA00027

RIVET

2шт.
