(35.106.AD[05]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX130D LC (35.106.AD[05]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

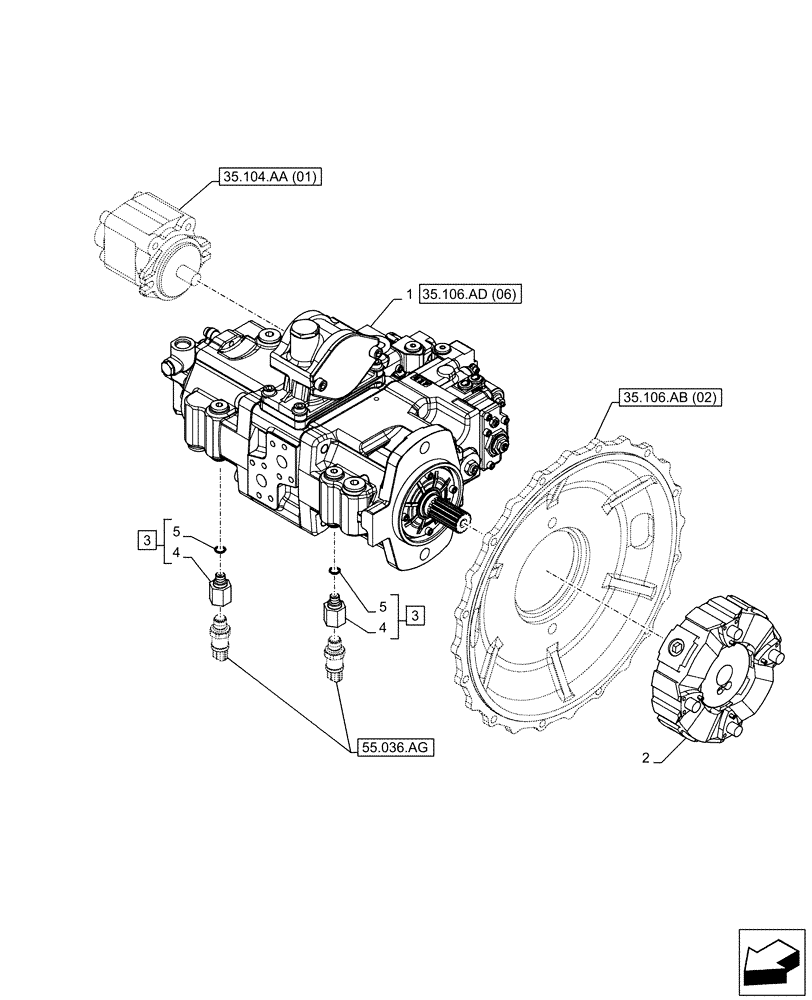

Схема запчастей Case CX130D LC - (35.106.AD[05]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.106.ad (06)
4
4
55.036.ag
3
5
1
3
2
35.104.aa (01)
5
35.106.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ21980

HYDRAULIC PUMP

ASSY

1шт.

2

KNJ19710

FLEXIBLE COUPLING

1шт.

3

KHJ18180

STUD

ASSY G1/4" x M18, Incl 4 - 5

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

2шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

Выбрано товаров: 5
