Запчасти Case CX130D LC (35.104.AA[02]) - VAR - 461863 - HYDRAULIC PUMP, GEAR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

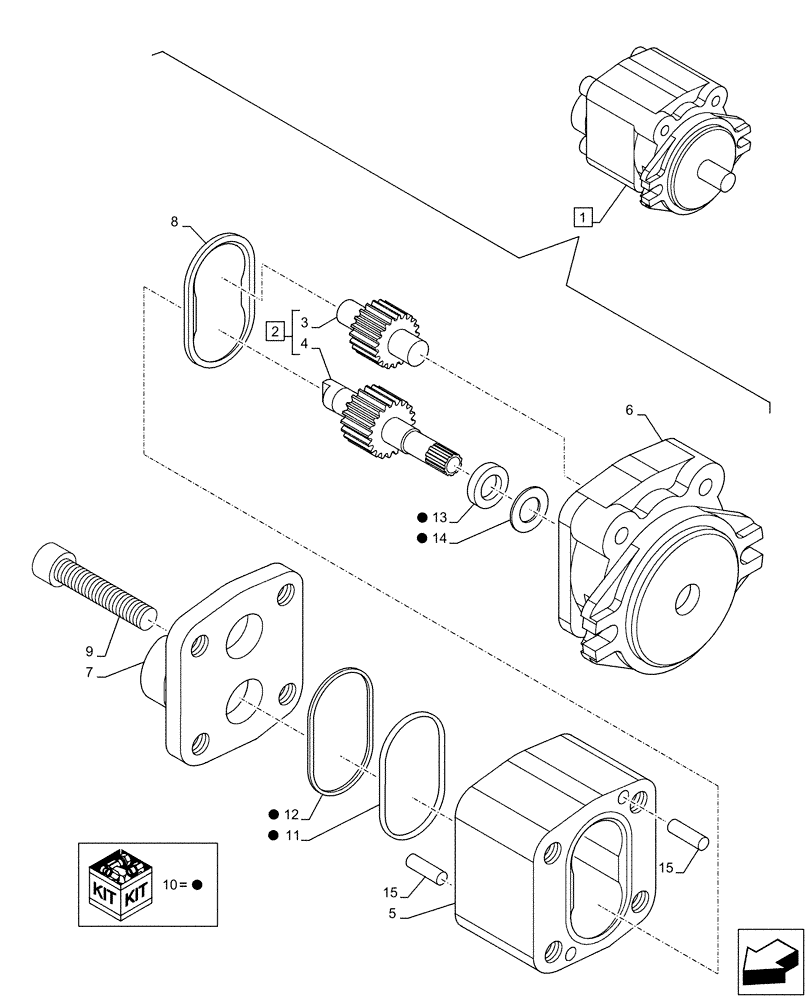

![Схема запчастей Case CX130D LC - (35.104.AA[02]) - VAR - 461863 - HYDRAULIC PUMP, GEAR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5366841.png)
13
1
7
9
10
8
12
15
6
10
10
11
3
2
14
10
10
10
4
15
5
№
Артикул
Название
Примечание
Количество
1
KNJ19600
PUMP
ASSY, Incl 2 - 15
1шт.
2
LC002960
GEAR SET
ASSY, Incl 3 - 4
1шт.
3
NSS
NOT SOLD SEPARAT
Gear, Incl in 2
1шт.
4
NSS
NOT SOLD SEPARAT
Gear, Incl in 2
1шт.
5
NSS
NOT SOLD SEPARAT
Plate, Incl in 1
1шт.
6
LW006900
COVER
1шт.
7
LW006890
COVER
1шт.
8
LR015150
PLATE
2шт.
9
LA015030
BOLT
4шт.
10
LZ008000
REPAIR KIT
1шт.
11
NSS
NOT SOLD SEPARAT
Seal, Incl in 1
2шт.
12
LBP0073
BACK-UP RING
2шт.
13
LAP0033
OIL SEAL
1шт.
14
LMP0257
RING
1шт.
15
LA011060
SPECIAL PIN
4шт.
Выбрано товаров: 15
