Запчасти Case CX130D LC (90.124.AF[01]) - VAR - 781277 - SEAT BACK (90) - PLATFORM, CAB, BODYWORK AND DECALS

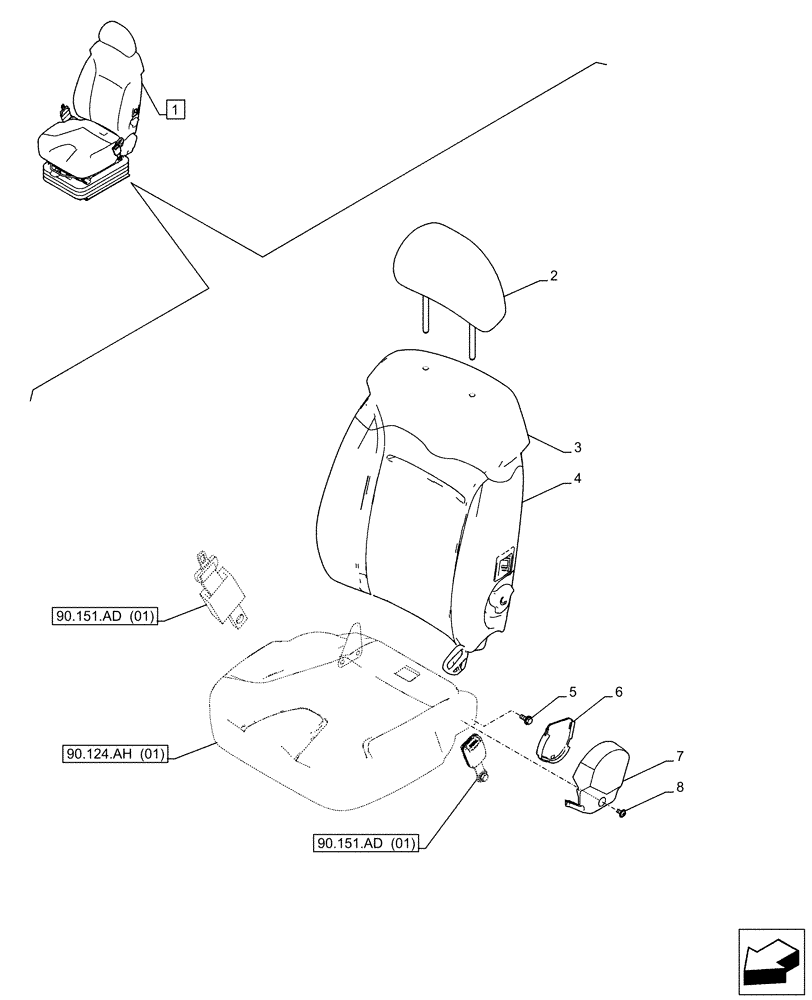

Схема запчастей Case CX130D LC - (90.124.AF[01]) - VAR - 781277 - SEAT BACK (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ad (01)
6
8
1
2
4
7
3
5
90.124.ah (01)
90.151.ad (01)

Артикул

Название

Примечание

Количество

1

KHN42780

DRIVER SEAT

ASSY, Incl 2 - 8, Years: -31-JAN-16

1шт.

1

KHN42781

DRIVER SEAT

ASSY, Incl 2 - 8, Start Year: 01-FEB-16

1шт.

2

KHN40280

SEAT HEADREST

, Years: -31-JAN-16

1шт.

2

KHN40281

SEAT HEADREST

, Start Year: 01-FEB-16

1шт.

3

KHN17680

COVER

1шт.

4

KHN40750

BACK

, Years: -31-JAN-16

1шт.

4

KHN40751

BACK

, Start Year: 01-FEB-16

1шт.

5

KHN40240

BOLT

4шт.

6

KHN40250

HINGE

1шт.

7

KHN40270

HINGE

1шт.

8

KHN40260

SCREW

2шт.

Выбрано товаров: 11
