(90.105.BV[13]) - VAR - 461558 - COVER, CUSHION VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX130D LC (90.105.BV[13]) - VAR - 461558 - COVER, CUSHION VALVE, CONTROL PATTERN SELECTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

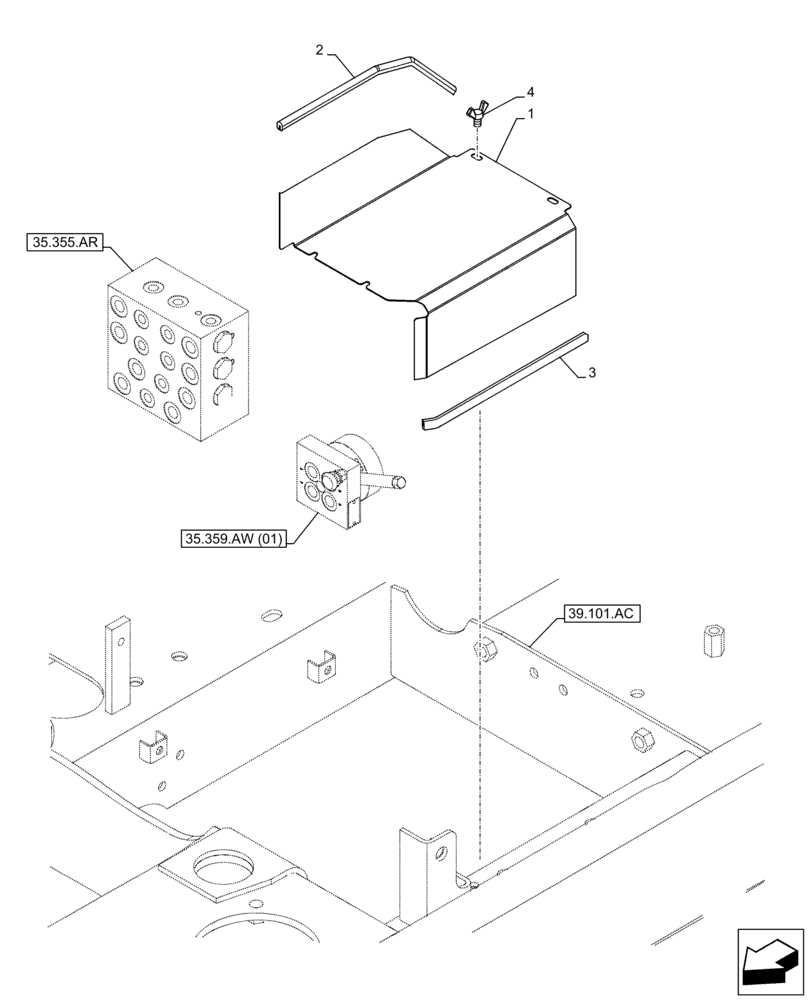

Схема запчастей Case CX130D LC - (90.105.BV[13]) - VAR - 461558 - COVER, CUSHION VALVE, CONTROL PATTERN SELECTION (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
3
2
35.355.ar
35.359.aw (01)
39.101.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ22560

COVER

1шт.

2

KRN10750

SEAL PROTECTION

440mm

1шт.

3

KTN0562

GASKET

1шт.

4

KHN17030

SPECIAL BOLT

M8 x 20mm

4шт.
