(90.105.BV[07]) - HOUSING & COVERS

Запчасти Case CX130D LC (90.105.BV[07]) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

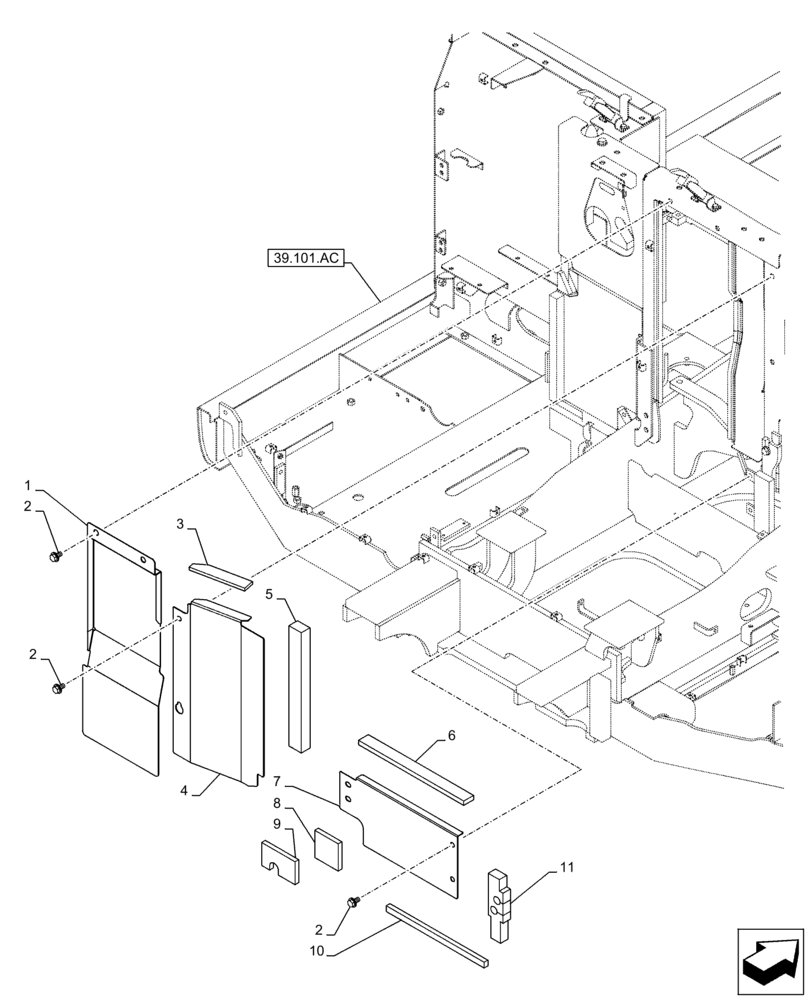

Схема запчастей Case CX130D LC - (90.105.BV[07]) - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
39.101.ac
1
8
9
6
7
10
11
5
2
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNN16040

COVER

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

8шт.

3

KNN14670

SEAL

1шт.

4

KNN16250

COVER

1шт.

5

KNN16070

SEAL

1шт.

6

KNN13380

SEAL

1шт.

7

KNN15690

COVER

1шт.

8

KNN13250

SEAL

1шт.

9

KNN15740

SEAL

1шт.

10

KNN13230

INSULATION

1шт.

11

KNN15750

SEAL

1шт.
