(90.105.BV[06]) - HOUSING & COVERS, INSULATION

Запчасти Case CX130D LC (90.105.BV[06]) - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

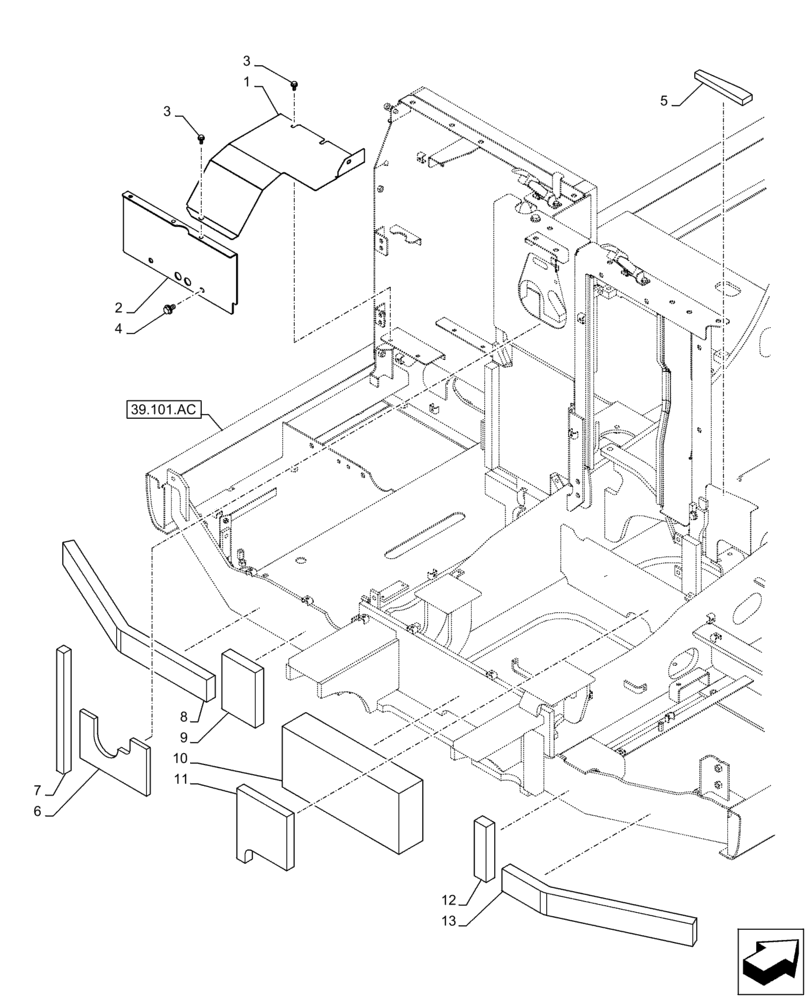

Схема запчастей Case CX130D LC - (90.105.BV[06]) - HOUSING & COVERS, INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
7
1
2
9
12
13
10
11
3
6
8
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNN16060

COVER

1шт.

2

KNN15990

BRACKET

1шт.

3

166350A1

BOLT

4шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

5

KNN14660

SEAL

1шт.

6

KNN16100

SEAL

1шт.

7

KNN14410

SEAL

1шт.

8

KNN10820

SEAL

1шт.

9

KLN10570

SEAL

1шт.

10

KNN12400

SEAL

1шт.

11

KNN16260

SEAL

1шт.

12

KLN10580

SEAL

1шт.

13

KNN10810

SEAL

1шт.
