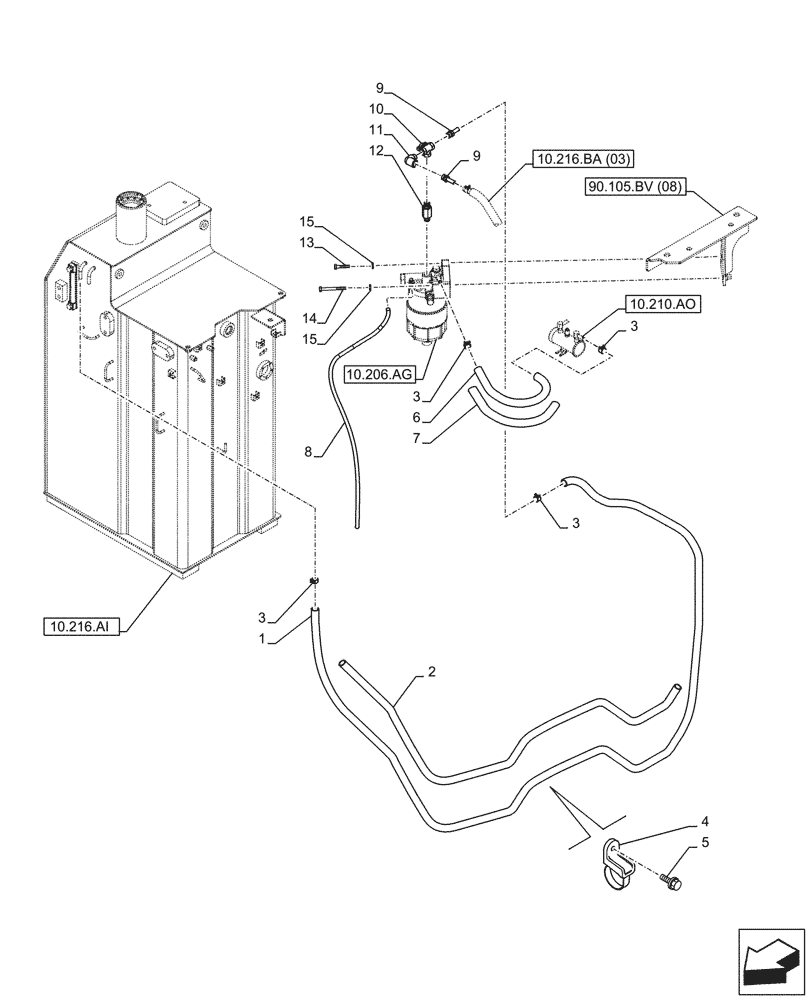

Запчасти Case CX130D LC (10.216.BA[02]) - FUEL LINE (10) - ENGINE

1

KHH18820

HOSE

3650mm

1шт.

2

KHR15910

PLASTIC-RUBBER TUBE

19mm ID x 3500mm

1шт.

3

KHH0405

MOUNTING CLIP

4шт.

4

KHR2581

CLAMP

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

6

KHH14320

HOSE

500mm

1шт.

7

150476A1

PLASTIC-RUBBER TUBE,19.3 mm ID, 23.8 mm OD, 400 mm Length

1шт.

8

KHH11830

PLASTIC-RUBBER TUBE

1050mm

1шт.

9

151252A1

NIPPLE, LUBE

2шт.

10

KHH15171

COCK

1шт.

11

152159A1

ELBOW

1шт.

12

KHH18560

NIPPLE

M16 x 1.5mm

1шт.

13

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

M8 x 40mm

2шт.

14

102R008Y075R

BOLT

M8 x 75mm

1шт.

15

153081A1

WASHER

3шт.
