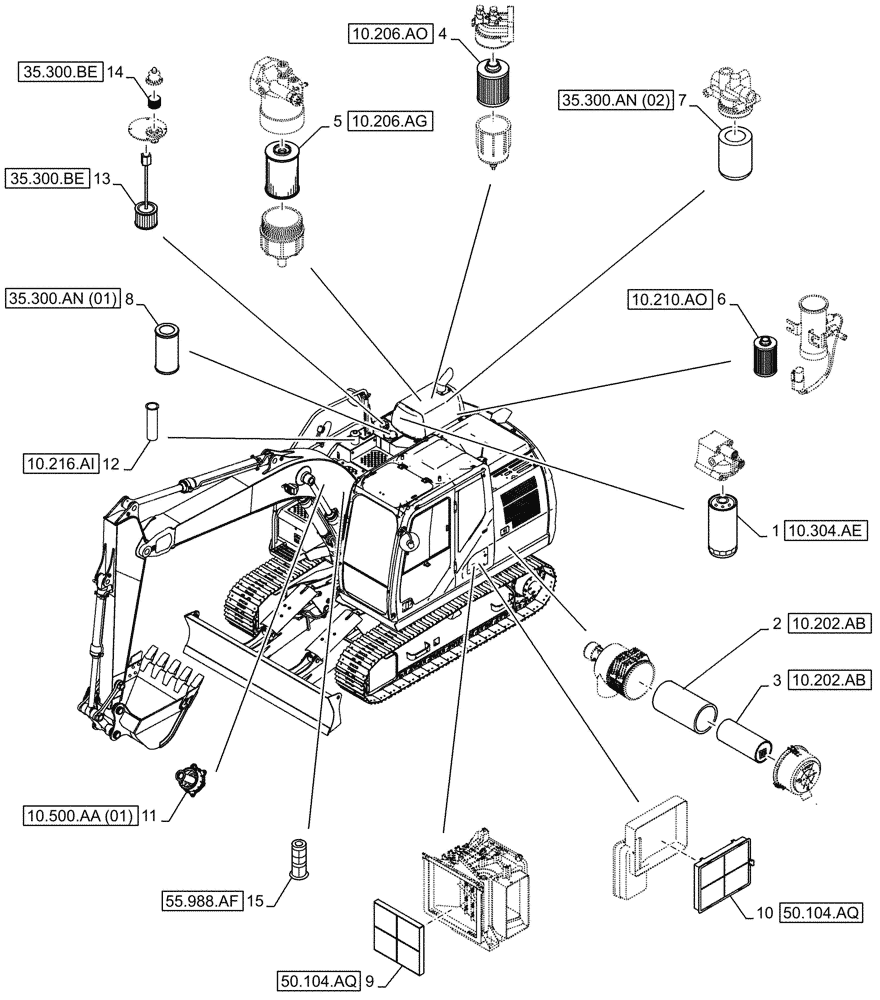

Запчасти Case CX130D LC (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE

1

87327673

ENGINE OIL FILTER

Element, Replace every 500 Hours

1шт.

2

KMH0781

AIR FILTER

Air Cleaner, Primary, Replace every 1000 Hours

1шт.

3

KMH0830

AIR FILTER

Air Cleaner, Secondary, Replace every 1000 Hours

1шт.

4

KHH12030

FUEL FILTER

Pre-Filter Element, Replace every 500 Hours

1шт.

5

84273157

FUEL FILTER

Element, Replace every 500 Hours

1шт.

6

KHH11890

FILTER SCREEN

Fuel Pump

1шт.

7

KHJ17730

HYDRAULIC OIL FILTER

Pilot Line Filter Element, Replace every 2000 Hours (After 250 hours of operation in run-in period)

1шт.

8

KNJ14680

HYDRAULIC OIL FILTER

Return, Replace every 2000 Hours (After 250 hours of operation in run-in period)

1шт.

9

KHR27540

CAB FILTER

Circulation, Replace every 2000 Hours

1шт.

10

KHR27260

CAB FILTER

Suction, Replace every 2000 Hours

1шт.

11

KHH15591

FILTER

Urea Tank

1шт.

12

KHH10060

FILTER

Fuel Tank

1шт.

13

KNJ22540

FILTER STRAINER

Inlet, Replace every 5000 Hours

1шт.

14

159702A1

HYDRAULIC OIL FILTER

Reservoir Breather, Replace every 1000 Hours

1шт.

15

47703146

FILTER

Supply Module, Replace every 4500 Hours

1шт.
