(84.912.AB[03]) - VAR - 781178, 481064 - ARM, CYLINDER, PIN, SAFETY VALVE (ARM L=3M)

Запчасти Case CX130D LC (84.912.AB[03]) - VAR - 781178, 481064 - ARM, CYLINDER, PIN, SAFETY VALVE (ARM L=3M) (84) - BOOMS, DIPPERS & BUCKETS

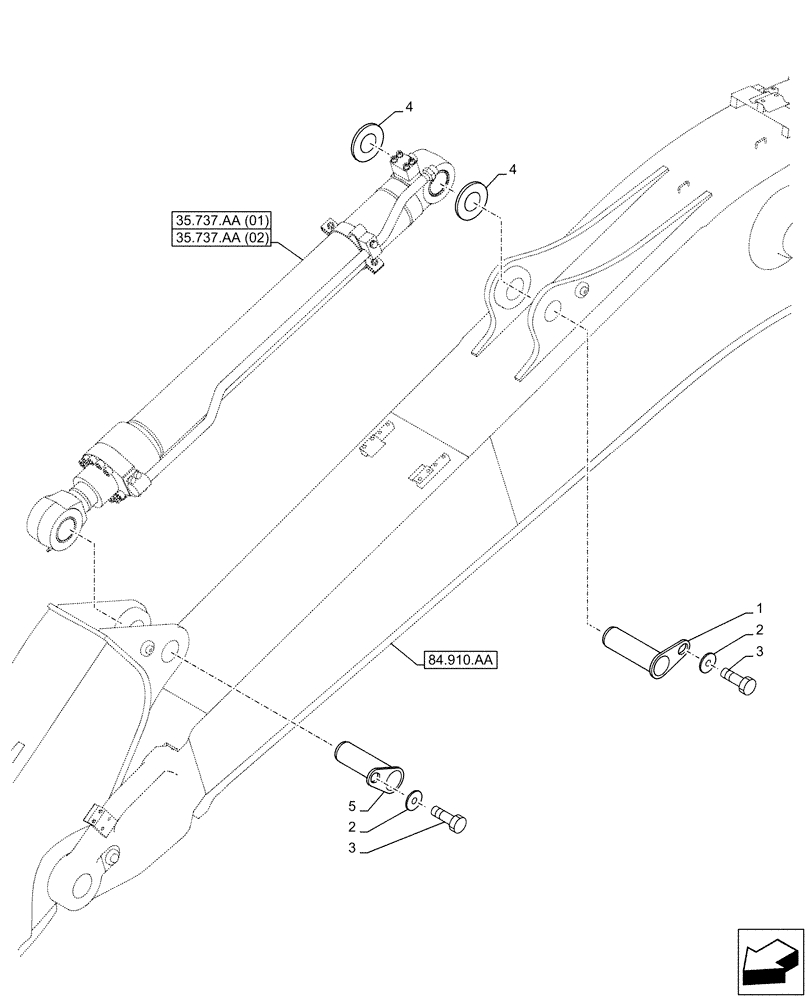

Схема запчастей Case CX130D LC - (84.912.AB[03]) - VAR - 781178, 481064 - ARM, CYLINDER, PIN, SAFETY VALVE (ARM L=3M) (84) - BOOMS, DIPPERS & BUCKETS
4
35.737.aa (01)
2
5
3
35.737.aa (02)
3
1
2
84.910.aa
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV13440

PIN

1шт.

2

157141A1

WASHER

2шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

4

160735A1

ADJUSTING PLATE

2шт.

5

KNV17621

PIN

1шт.
