(84.910.AD[02]) - VAR - 481858 - BOOM, BUSHING (L=4.63M)

Запчасти Case CX130D LC (84.910.AD[02]) - VAR - 481858 - BOOM, BUSHING (L=4.63M) (84) - BOOMS, DIPPERS & BUCKETS

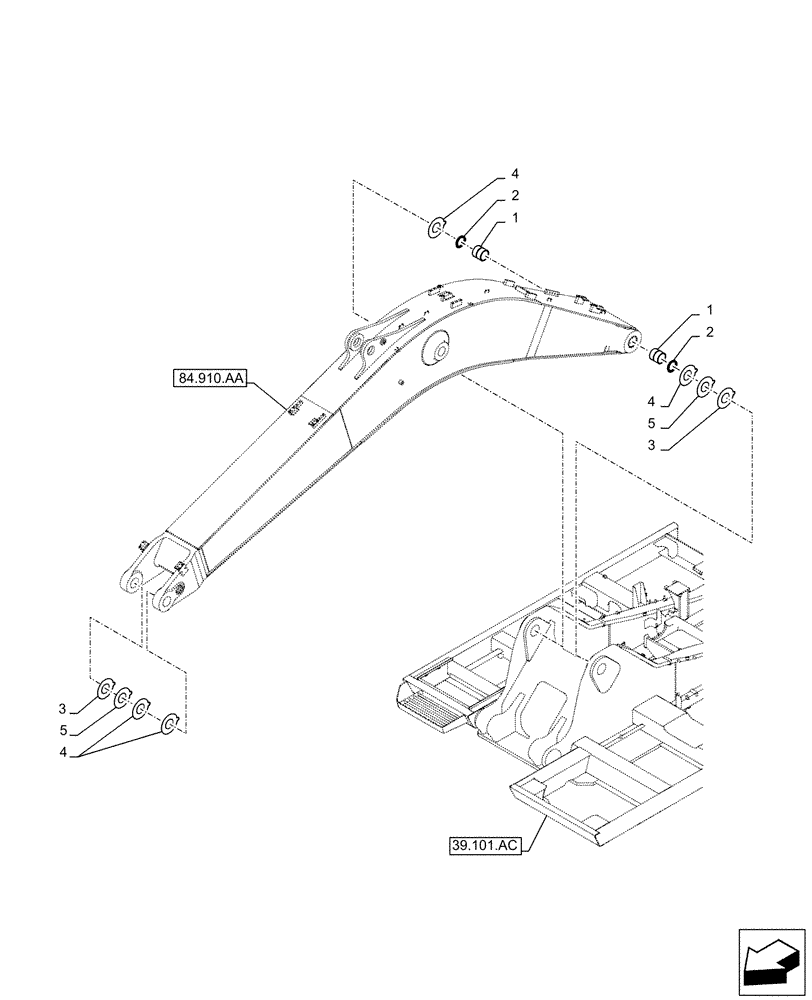

Схема запчастей Case CX130D LC - (84.910.AD[02]) - VAR - 481858 - BOOM, BUSHING (L=4.63M) (84) - BOOMS, DIPPERS & BUCKETS
5
1
84.910.aa
1
2
4
3
3
4
39.101.ac
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV1140

SELF LUB RING

2шт.

Part is Included in Boom Assembly PN KNV22421

1шт.

2

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

2шт.

Part is Included in Boom Assembly PN KNV22421

1шт.

3

KNV24210

SHIM

1.5mm

2шт.

4

KNV12800

SHIM,1mm Thk

4шт.

5

KNV12810

SHIM,2mm Thk

2шт.

Выбрано товаров: 7
