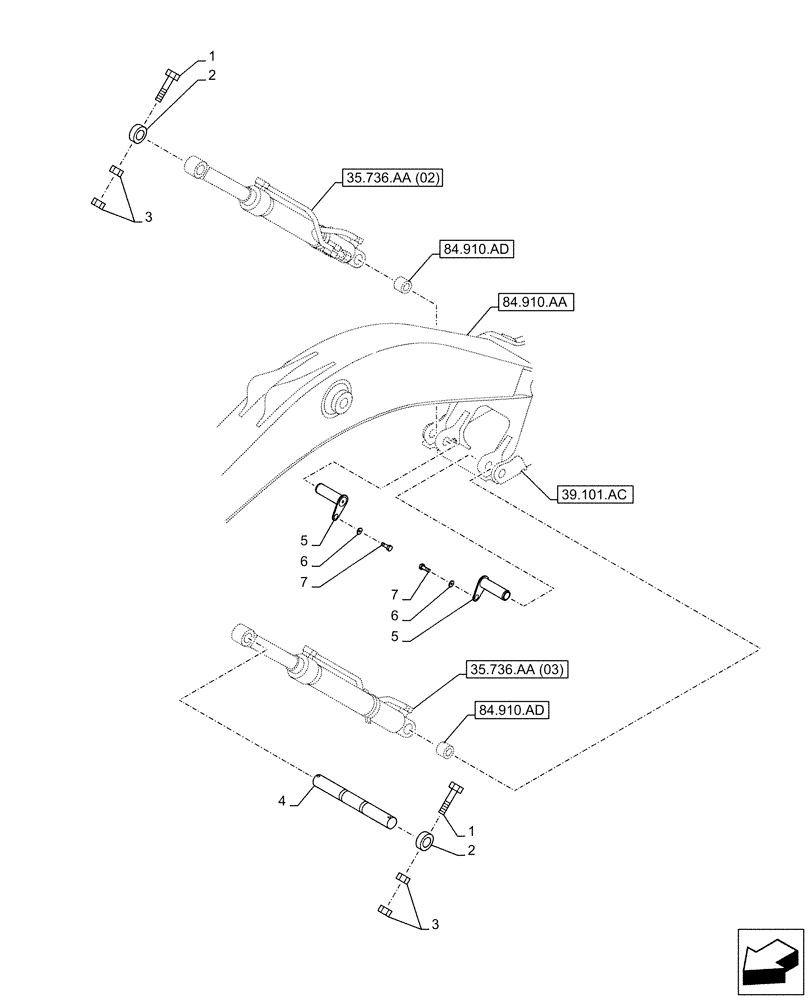

Запчасти Case CX130D LC (84.910.AC[01]) - VAR - 481858, 481064 - BOOM, CYLINDER, PIN (84) - BOOMS, DIPPERS & BUCKETS

1

514-1038

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

2шт.

2

KNV1247

RING, LOCKING

2шт.

3

829-13416

NUT,M16 x 1.5, Cl 10

4шт.

4

169079A1

PIN

1шт.

5

KNV13450

PIN

2шт.

6

157141A1

WASHER

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.
