Запчасти Case CX130D LC (84.100.AP[02]) - VAR - 461023, 481064 - BUCKET, LINK, W/O HOOK, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS

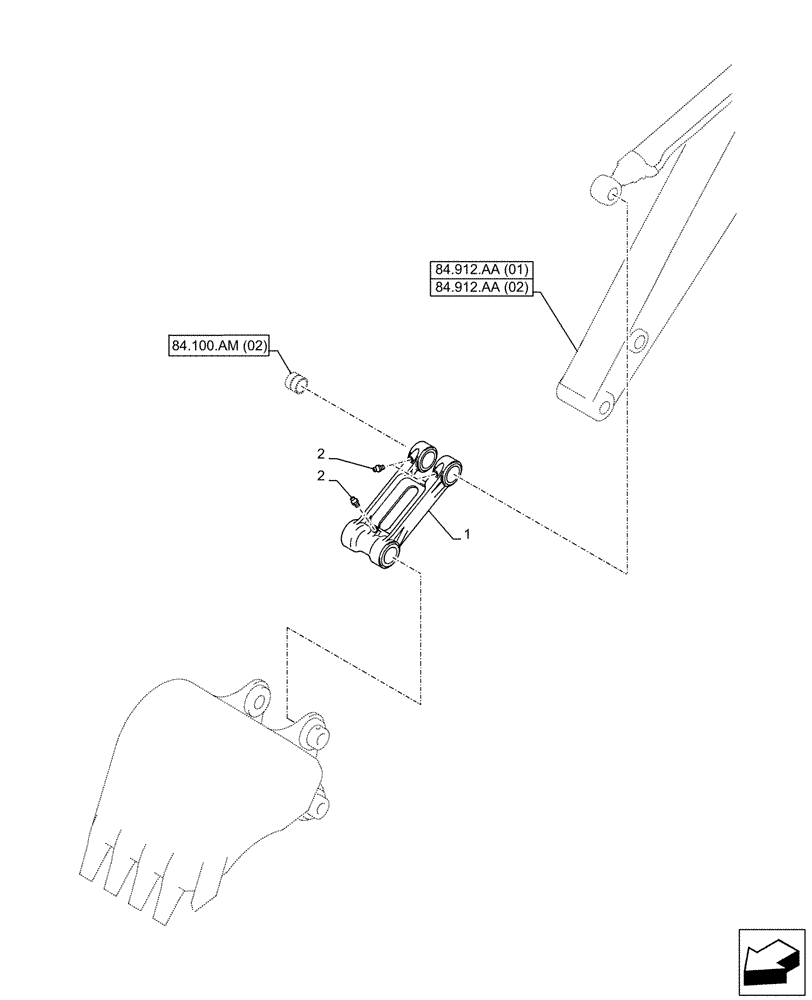

Схема запчастей Case CX130D LC - (84.100.AP[02]) - VAR - 461023, 481064 - BUCKET, LINK, W/O HOOK, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS
2
84.100.am (02)
84.912.aa (02)
2
84.912.aa (01)
1

Артикул

Название

Примечание

Количество

1

KNV21190

POWER ARM

ASSY

1шт.

See also Figure 84.100.AM (02)

1шт.

2

153630A1

LUBE NIPPLE

3шт.

Выбрано товаров: 3
