(84.100.AM[02]) - VAR - 461023, 481064 - BUSHING, BUCKET, LINK, W/O HOOK, SAFETY VALVE

Запчасти Case CX130D LC (84.100.AM[02]) - VAR - 461023, 481064 - BUSHING, BUCKET, LINK, W/O HOOK, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS

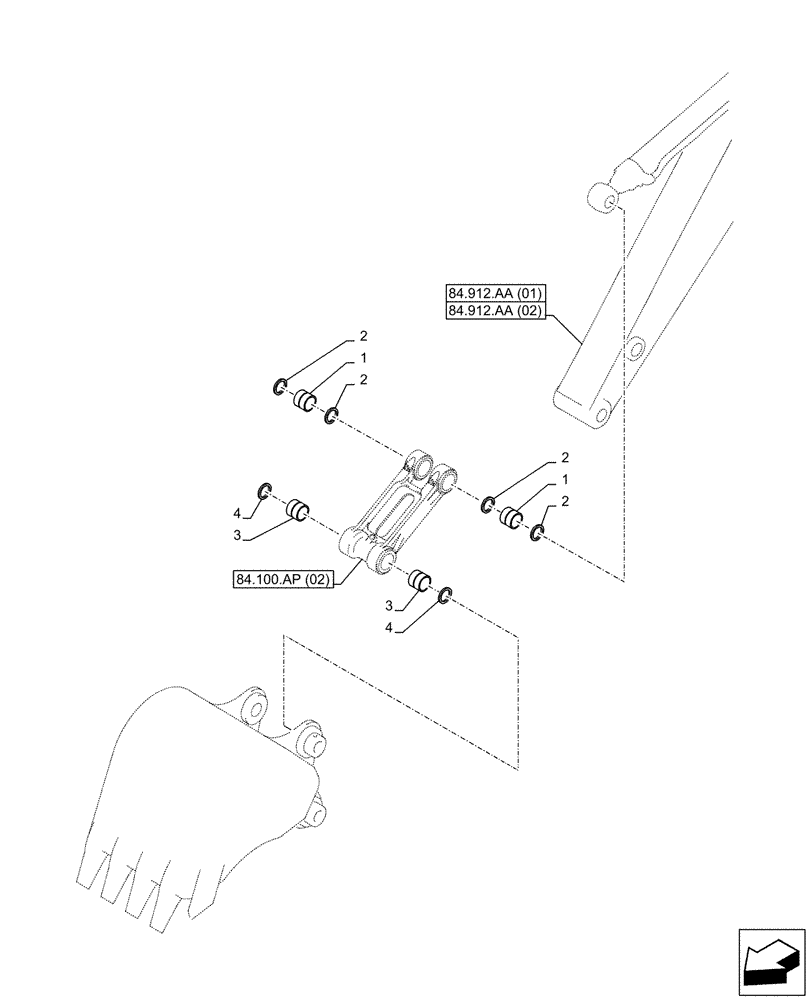

Схема запчастей Case CX130D LC - (84.100.AM[02]) - VAR - 461023, 481064 - BUSHING, BUCKET, LINK, W/O HOOK, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS
1
2
1
84.912.aa (02)
2
84.100.ap (02)
4
2
4
3
84.912.aa (01)
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV1143

SELF LUB RING

2шт.

2

161295A1

SEAL,70mm ID x 85mm OD x 5mm Thk

4шт.

3

KNV17300

BUSHING

2шт.

4

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

2шт.
