(35.738.AE[05]) - VAR - 461574 - BUCKET CYLINDER, LINES, HEAVY DUTY (ARM L=2.10M)

Запчасти Case CX130D LC (35.738.AE[05]) - VAR - 461574 - BUCKET CYLINDER, LINES, HEAVY DUTY (ARM L=2.10M) (35) - HYDRAULIC SYSTEMS

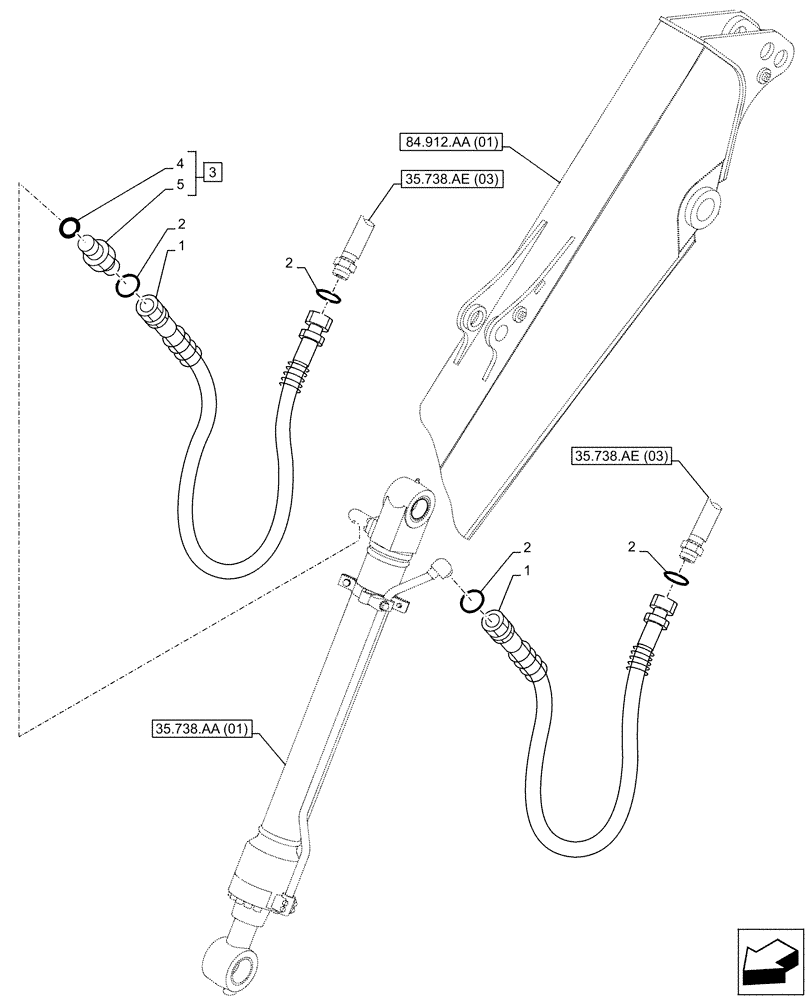

Схема запчастей Case CX130D LC - (35.738.AE[05]) - VAR - 461574 - BUCKET CYLINDER, LINES, HEAVY DUTY (ARM L=2.10M) (35) - HYDRAULIC SYSTEMS
4
1
5
1
2
35.738.ae (03)
84.912.aa (01)
2
3
2
35.738.ae (03)
35.738.aa (01)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV15700

HYDRAULIC HOSE,1650.00 mm

19mm ID x 1650mm

2шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

3

KHJ1348

ADAPTER

ASSY, Incl 4, 5

1шт.

4

150542A1

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.
