(35.738.AE[04]) - VAR - 781178 - BUCKET CYLINDER, LINES (ARM L=3.0M)

Запчасти Case CX130D LC (35.738.AE[04]) - VAR - 781178 - BUCKET CYLINDER, LINES (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS

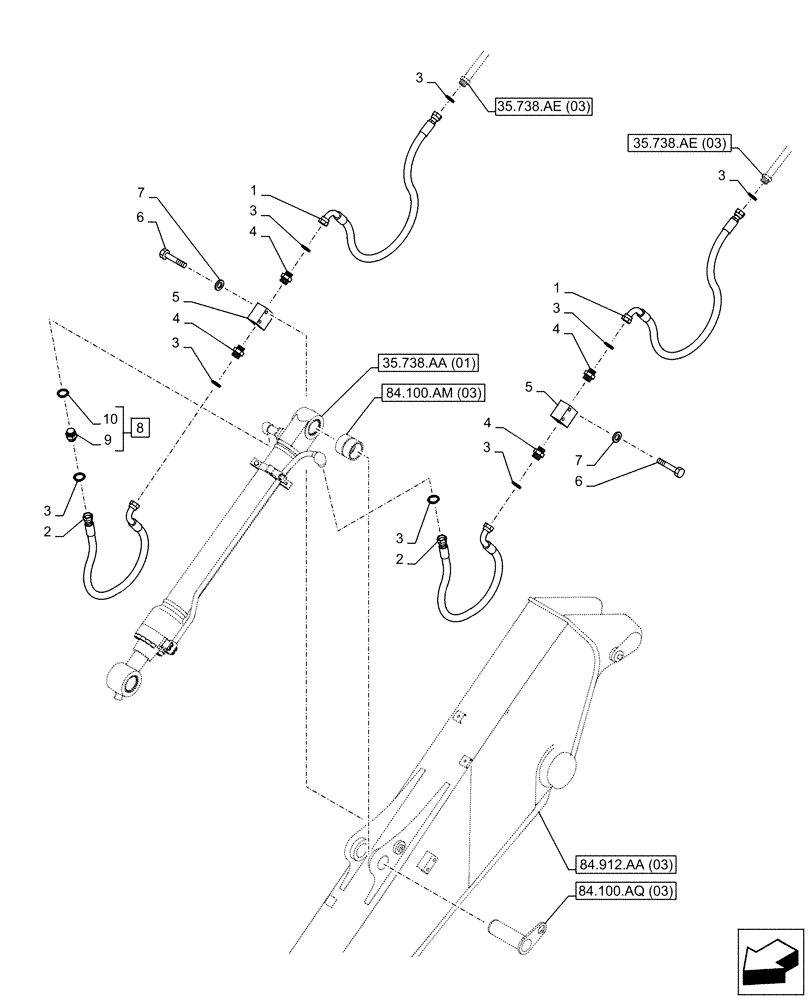

Схема запчастей Case CX130D LC - (35.738.AE[04]) - VAR - 781178 - BUCKET CYLINDER, LINES (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS
3
3
84.912.aa (03)
3
3
6
35.738.aa (01)
7
3
2
1
5
84.100.aq (03)
5
35.738.ae (03)
84.100.am (03)
4
1
3
8
3
4
2
4
6
9
7
10
3
35.738.ae (03)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV14220

HYDRAULIC HOSE

2шт.

2

KRV25390

HYDRAULIC HOSE

2шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

8шт.

4

KHJ1941

FITTING

4шт.

5

KNJ19690

MANIFOLD VALVE

2шт.

6

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

7

150811A1

WASHER

4шт.

8

KHJ1348

ADAPTER

ASSY, Incl 9 -10

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

10

150542A1

O-RING

1шт.
