(35.738.AE[02]) - BUCKET CYLINDER, LINES

Запчасти Case CX130D LC (35.738.AE[02]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

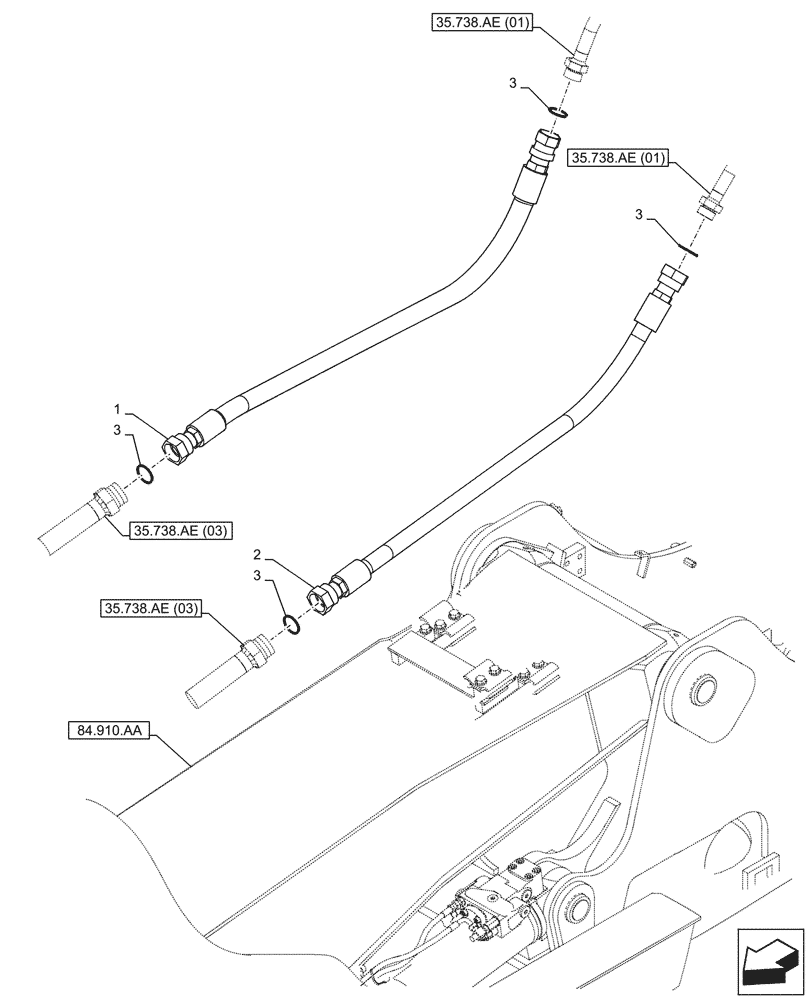

Схема запчастей Case CX130D LC - (35.738.AE[02]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.738.ae (01)
3
3
2
3
3
1
35.738.ae (03)
35.738.ae (03)
84.910.aa
35.738.ae (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ22810

HYDRAULIC HOSE

15mm ID x 900mm

1шт.

2

KNJ22780

HYDRAULIC HOSE

12mm ID x 870mm

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.
