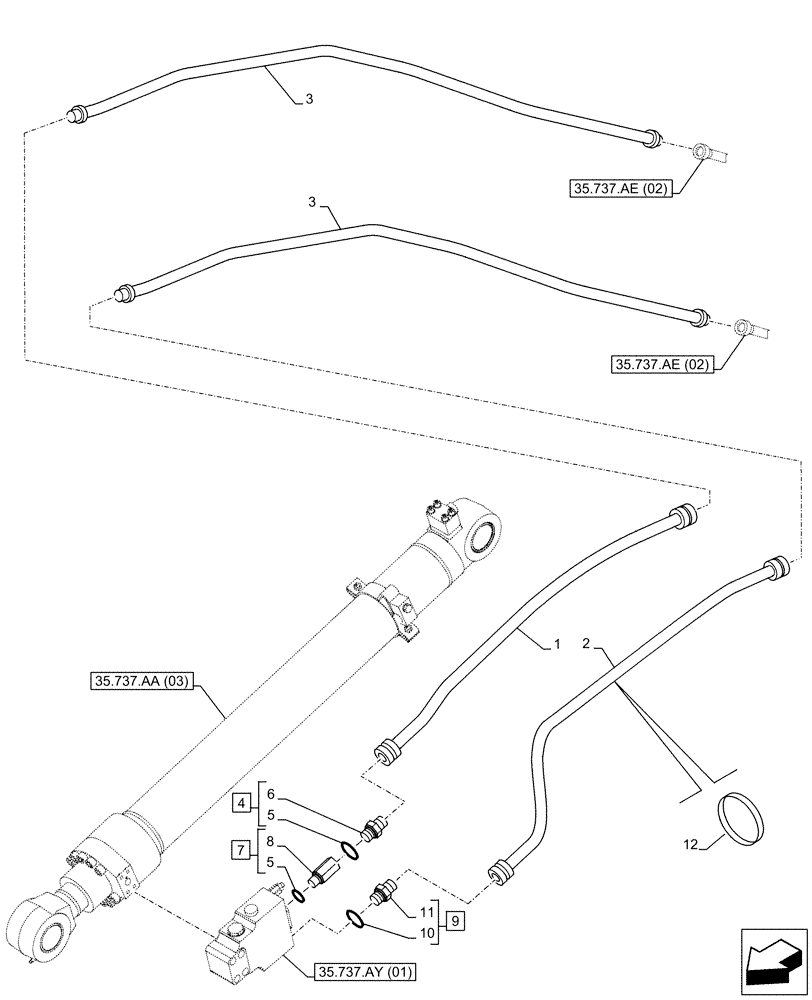

Запчасти Case CX130D LC (35.737.BC[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

KHJ35420

HYDRAULIC HOSE

9mm ID x 2150mm

1шт.

2

KHJ16830

HYDRAULIC HOSE

2200mm

1шт.

3

KNV16920Y2

HYD TUBE

2шт.

4

152747A1

ADAPTER

ASSY, Incl 5 (Qty 1), 6

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

162525A1

STUD

ASSY, Incl 5 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Stud, Incl in 7

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 10, 11

1шт.

10

150031A1

O-RING,10mm ID x 24mm OD

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

12

150067A1

MOUNTING CLIP

150mm

7шт.
