(35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX130D LC (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

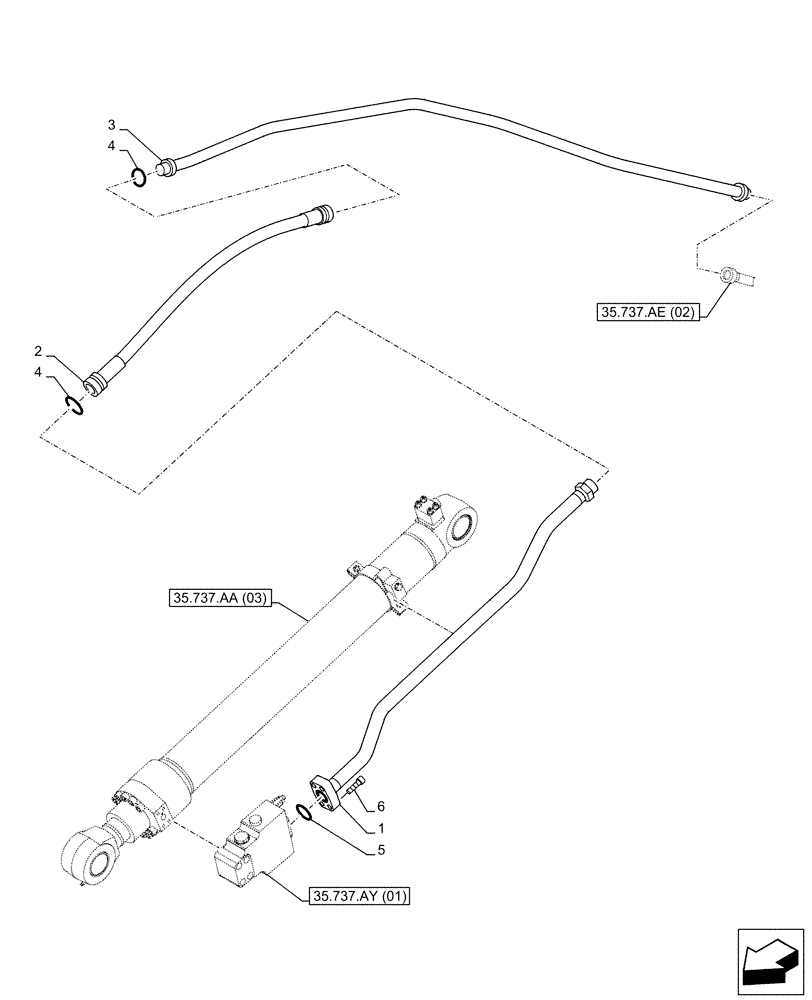

Схема запчастей Case CX130D LC - (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
2
6
5
1
35.737.aa (03)
4
3
4
35.737.ae (02)
35.737.ay (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV14720Y2

HYD TUBE

1шт.

2

KRV19720

HYDRAULIC HOSE,19.00 mm ID x 850.00 mm

850mm

1шт.

3

KNV16790Y2

HYD TUBE

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

5

161097A1

O-RING

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.
