(35.737.BC[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX130D LC (35.737.BC[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

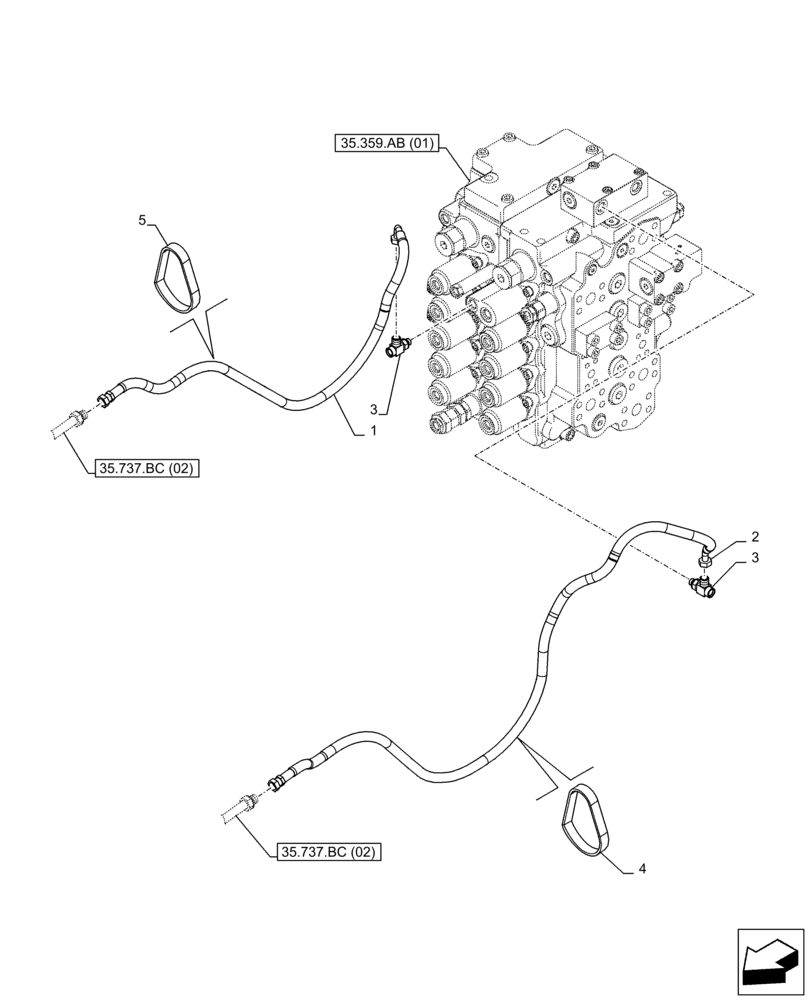

Схема запчастей Case CX130D LC - (35.737.BC[01]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
3
35.359.ab (01)
2
1
4
3
35.737.bc (02)
35.737.bc (02)
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ26710

HYDRAULIC HOSE

9mm ID x 1100mm

1шт.

2

KHJ34780

HYDRAULIC HOSE

9mm ID x 1600mm

1шт.

3

KHJ11560

TEE

G1/4" x G3/8" x G1/4"

2шт.

4

150496A1

MOUNTING CLIP

250mm

1шт.

5

150071A1

MOUNTING CLIP

380mm

1шт.
