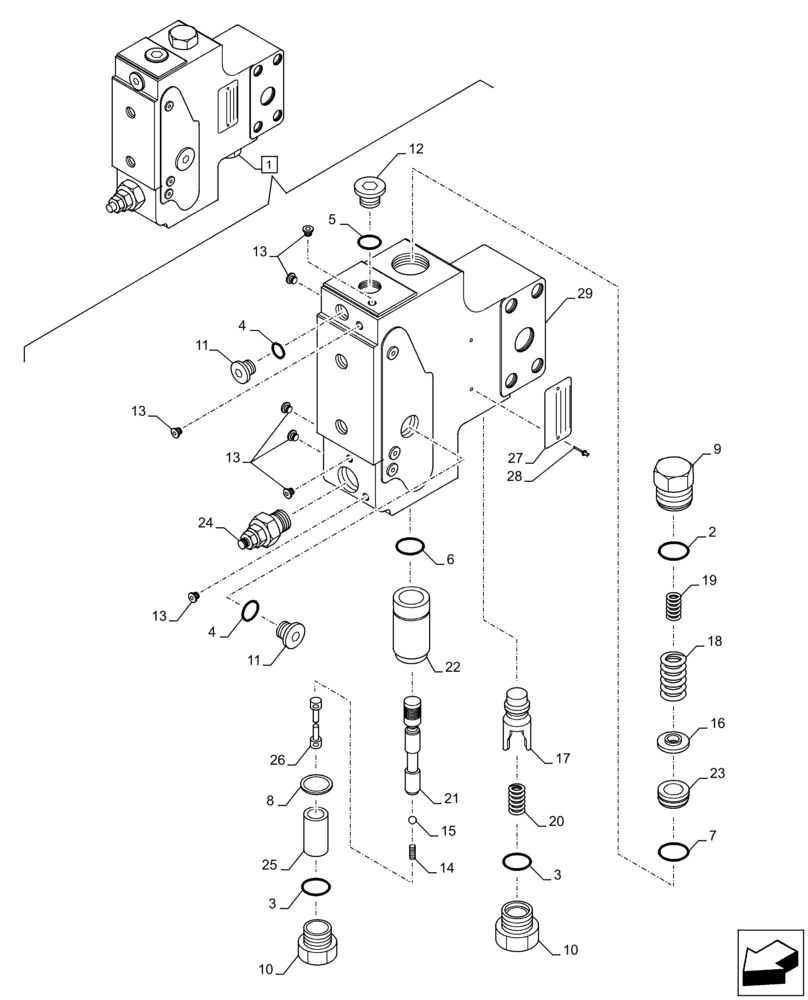

Запчасти Case CX130D LC (35.736.AG[02]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KNV12850

VALVE SECTION

ASSY, Incl 2 - 29

1шт.

2

154508A1

O-RING

1шт.

3

154491A1

O-RING

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

154475A1

O-RING

1шт.

6

LBQ6019

O-RING

1шт.

7

LBQ6021

O-RING

1шт.

8

LE015010

SEAL

1шт.

9

LK005710

PLUG

1шт.

10

LK005700

PLUG

2шт.

11

LK00015

PLUG

2шт.

12

LK00008

PLUG

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

8шт.

14

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Steel Ball, Incl in 1

1шт.

16

LR015420

SPRING SEAT

1шт.

17

LJ014850

VALVE POPPET

1шт.

18

LG006110

COMPRESSION SPRING

1шт.

19

LG006100

COMPRESSION SPRING

1шт.

20

LG006090

COMPRESSION SPRING

1шт.

21

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

24

LJ014840

VALVE PRESSURE RELIE

1шт.

25

LJ014830

PISTON

1шт.

26

LJ014820

PISTON

1шт.

27

NSS

NOT SOLD SEPARAT

Nameplate, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Rivet, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.
