(35.734.AD) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE

Запчасти Case CX130D LC (35.734.AD) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

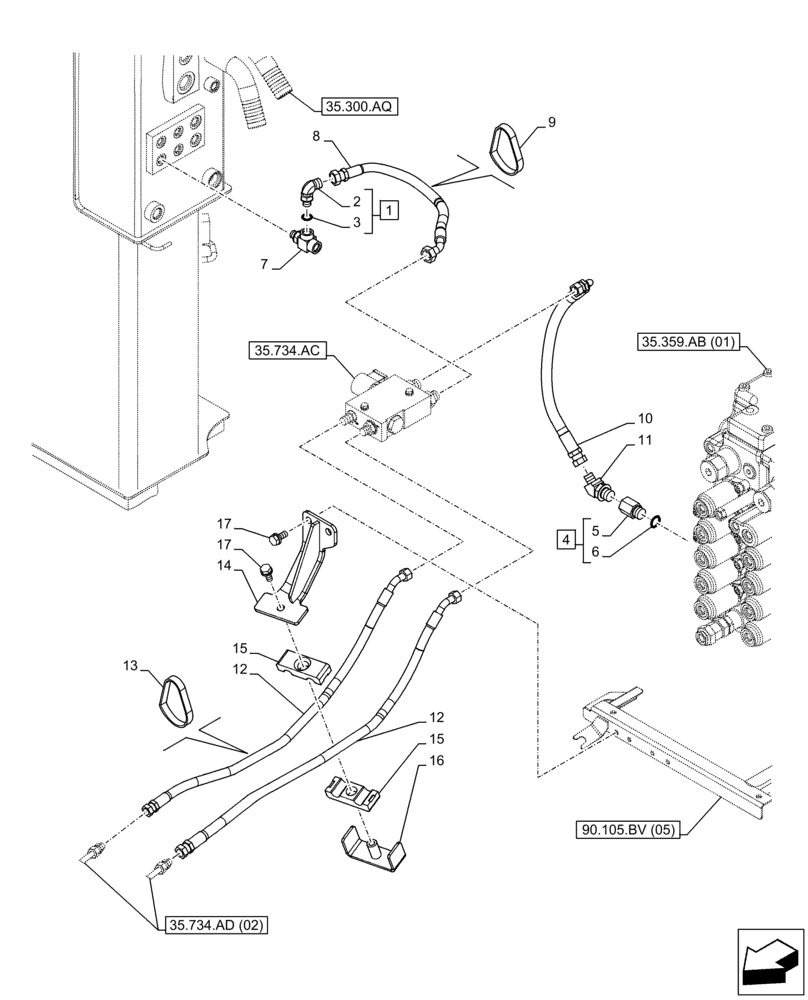

Схема запчастей Case CX130D LC - (35.734.AD) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
35.734.ac
12
17
3
7
14
6
4
17
90.105.bv (05)
10
35.359.ab (01)
15
5
13
8
35.734.ad (02)
16
11
15
35.300.aq
9
1
2
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28710

ELBOW

ASSY G1/4" x G3/8", Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

KHJ1713

STUD

ASSY G1/2" x G1/2" x 44mm, Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

150539A1

O-RING

1шт.

7

KHJ12530

TEE

1шт.

8

KAJ3892

HOSE ASSY.

1шт.

9

150496A1

MOUNTING CLIP

250mm

1шт.

10

KNJ22870

HYDRAULIC HOSE

9mm ID x 590mm

1шт.

11

KHJ1254

ELBOW

1шт.

12

KHJ34730

HYDRAULIC HOSE

6mm ID x 1000mm

2шт.

13

150071A1

MOUNTING CLIP

380mm

2шт.

14

KNJ22850

BRACKET

1шт.

15

KNJ22880

HOSE CLAMP

2шт.

16

KNJ22860

BRACKET

1шт.

17

166052A1

BOLT

M10 x 25mm

3шт.
