(35.360.AM[04]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.0M)

Запчасти Case CX130D LC (35.360.AM[04]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS

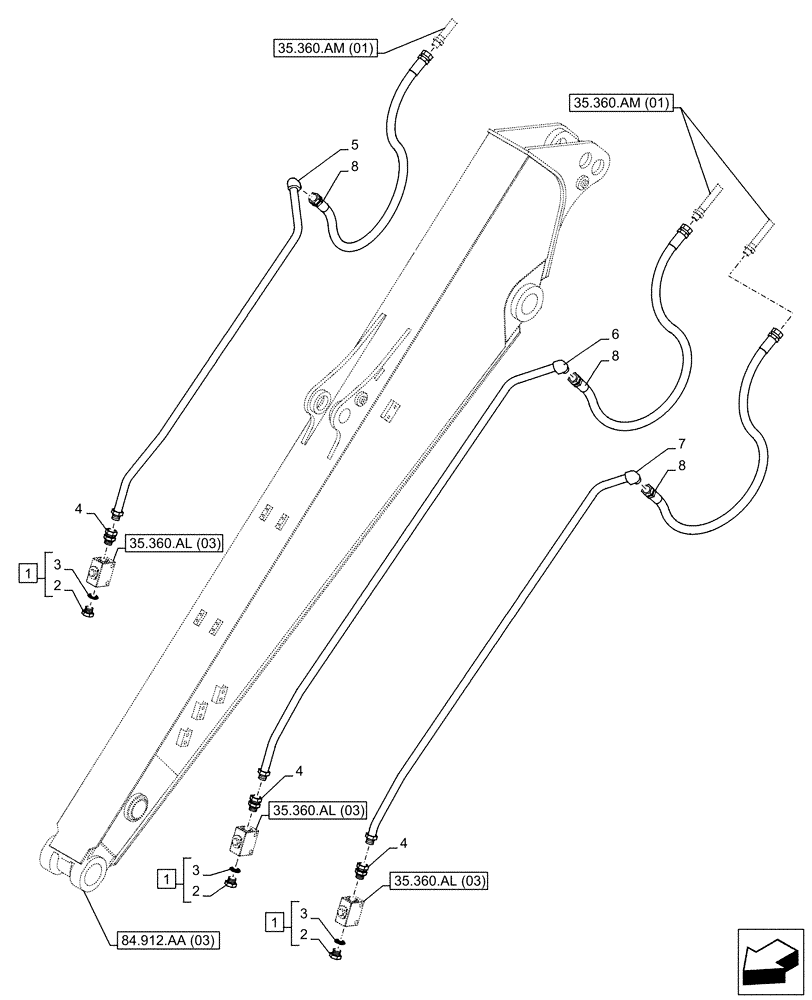

Схема запчастей Case CX130D LC - (35.360.AM[04]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS
6
8
35.360.al (03)
2
1
8
8
35.360.al (03)
4
5
7
1
3
4
35.360.am (01)
2
1
3
4
2
35.360.al (03)
35.360.am (01)
3
84.912.aa (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

ASSY, Incl 2 - 3

3шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

3шт.

3

150539A1

O-RING

3шт.

4

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

5

KNV18110

HYD TUBE

1шт.

6

KNV18100

HYD TUBE

1шт.

7

KNV18120

HYD TUBE

1шт.

8

KLV13810

HOSE ASSY.

12mm x 1300mm

3шт.
