(35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.1M)

Запчасти Case CX130D LC (35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.1M) (35) - HYDRAULIC SYSTEMS

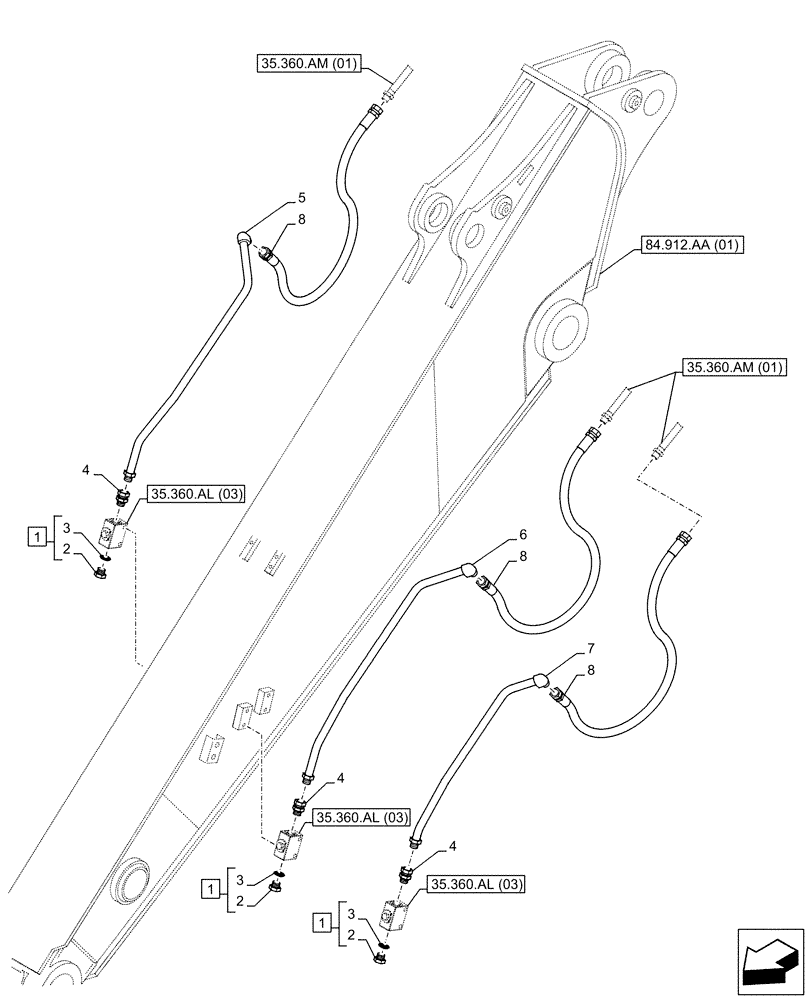

Схема запчастей Case CX130D LC - (35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.1M) (35) - HYDRAULIC SYSTEMS
1
84.912.aa (01)
35.360.al (03)
35.360.am (01)
35.360.al (03)
2
8
8
5
8
6
35.360.al (03)
2
1
2
3
4
35.360.am (01)
4
1
7
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

ASSY, Incl 2 - 3

3шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

3шт.

3

150539A1

O-RING

3шт.

4

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

5

KNV15770

HYD TUBE

1шт.

6

KNV15760

HYD TUBE

1шт.

7

KNV15780

HYD TUBE

1шт.

8

KNV14100

HYDRAULIC HOSE,12.70 mm ID x 1400.00 mm

12mm ID x 1400mm

3шт.
