(35.360.AK[07]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINE, HAMMER, SHEARS, HIGH FLOW (ARM L=3.0M)

Запчасти Case CX130D LC (35.360.AK[07]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINE, HAMMER, SHEARS, HIGH FLOW (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS

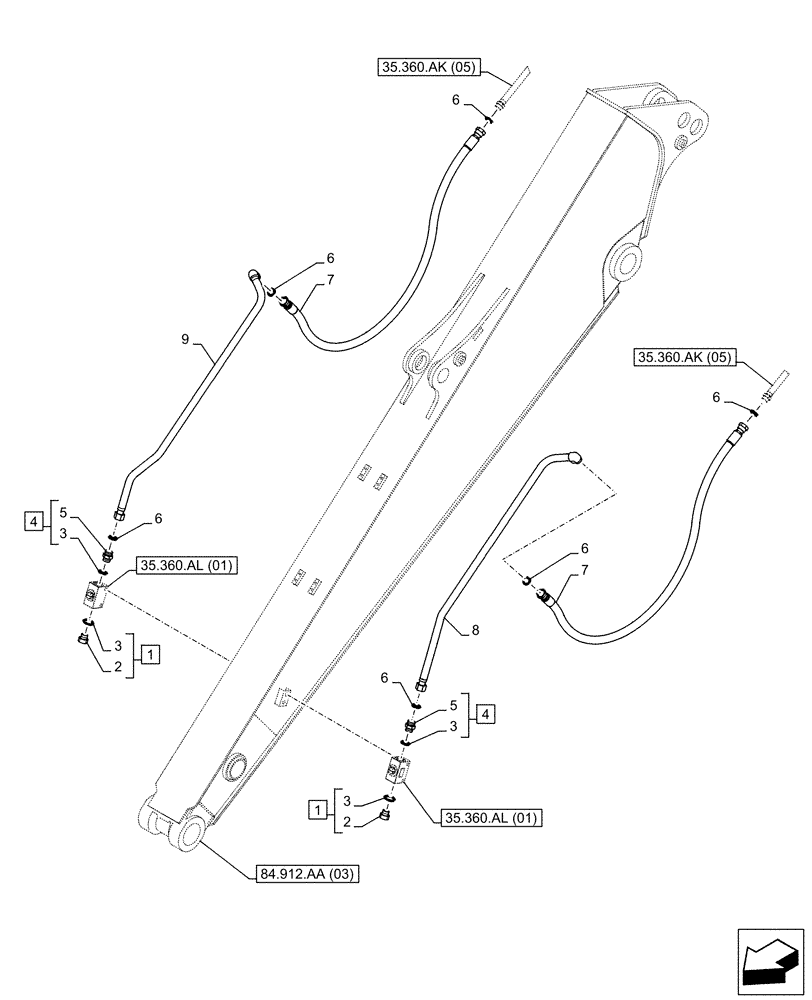

Схема запчастей Case CX130D LC - (35.360.AK[07]) - VAR - 461561, 461865, 461868, 461869, 461871 - ARM, LINE, HAMMER, SHEARS, HIGH FLOW (ARM L=3.0M) (35) - HYDRAULIC SYSTEMS
2
5
3
2
5
6
6
35.360.al (01)
1
35.360.al (01)
4
3
35.360.ak (05)
4
84.912.aa (03)
7
9
7
35.360.ak (05)
6
8
6
3
6
1
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

ASSY G3/4", Incl 2, 3 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

3

150542A1

O-RING

4шт.

4

KHJ1348

ADAPTER

ASSY, Incl 5, 3 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

2шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

7

KNV17310

HYDRAULIC HOSE,1800.00 mm

2шт.

8

KNV16840

HYD TUBE

1шт.

9

KNV16850

HYD TUBE

1шт.
