(35.360.AK[05]) - VAR - 461561, 461865, 461868, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW

Запчасти Case CX130D LC (35.360.AK[05]) - VAR - 461561, 461865, 461868, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS

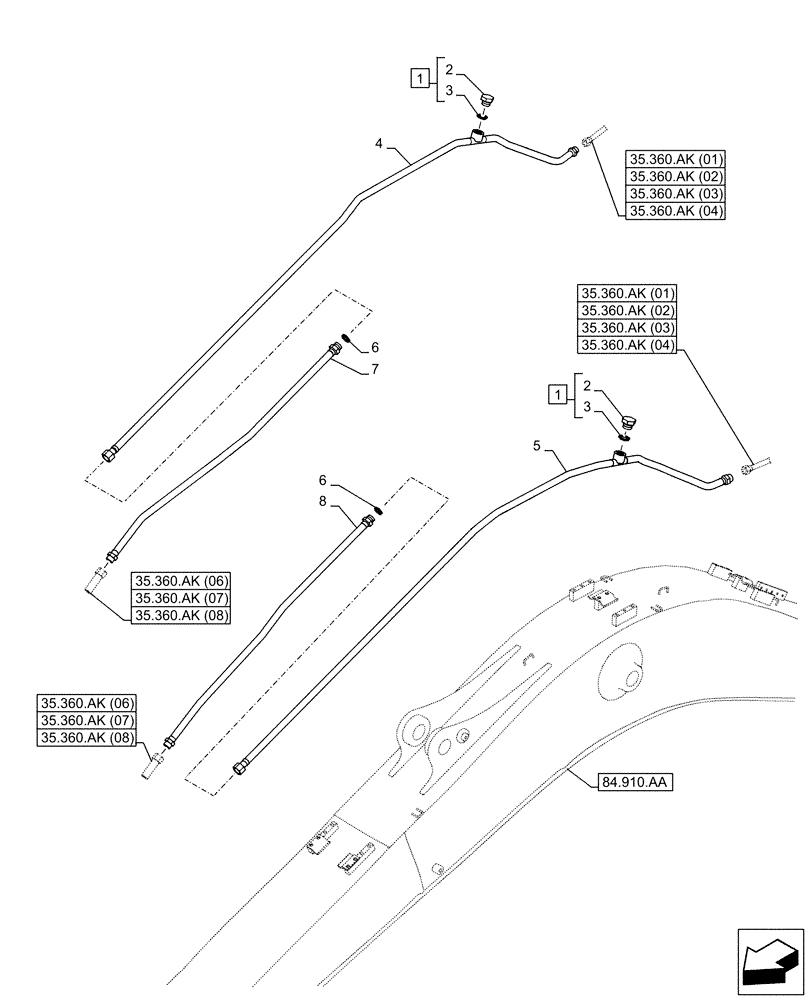

Схема запчастей Case CX130D LC - (35.360.AK[05]) - VAR - 461561, 461865, 461868, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS
6
35.360.ak (07)
35.360.ak (02)
35.360.ak (06)
2
1
35.360.ak (01)
2
35.360.ak (03)
35.360.ak (04)
35.360.ak (04)
84.910.aa
35.360.ak (08)
3
1
8
35.360.ak (07)
35.360.ak (06)
6
35.360.ak (08)
35.360.ak (01)
35.360.ak (03)
35.360.ak (02)
3
4
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

ASSY G3/4", Incl 2 - 3

2шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

3

150542A1

O-RING

2шт.

4

KNV16830

HYD TUBE

1шт.

5

KNV16820

HYD TUBE

1шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

7

KNV22950

PIPE

1шт.

8

KNV22940

PIPE

1шт.
