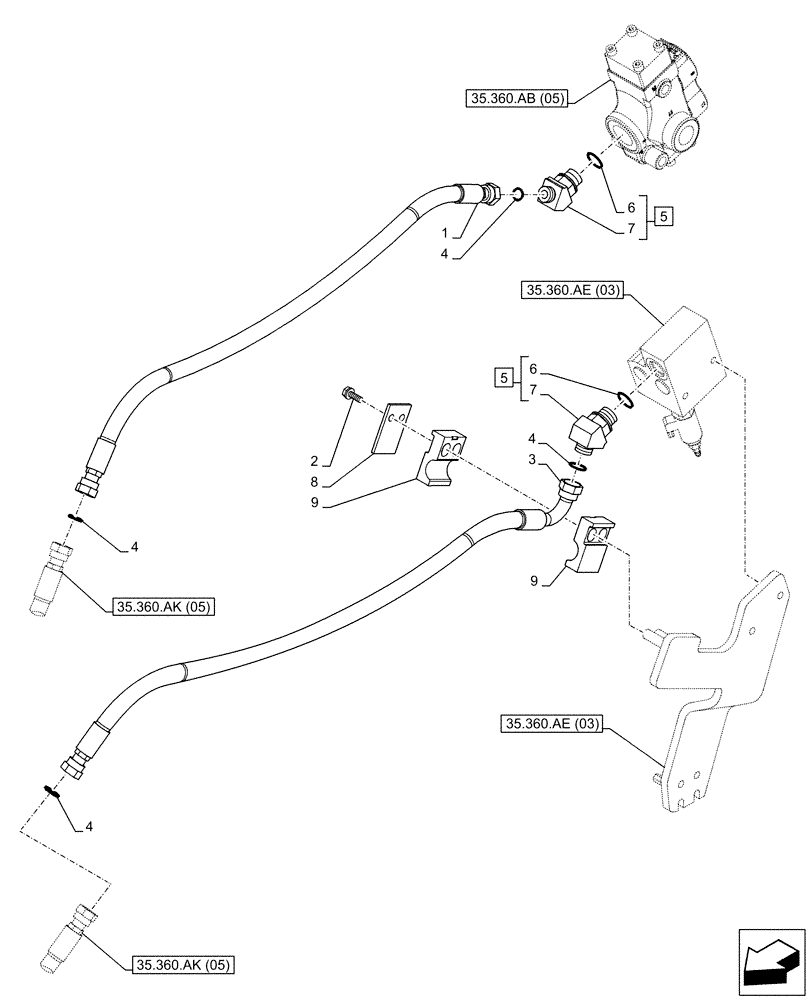

Запчасти Case CX130D LC (35.360.AK[04]) - VAR - 461869 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

12mm ID x 1250mm

1шт.

2

166347A1

BOLT,Sems, M10 x 30mm

2шт.

3

KSJ13090

HYDRAULIC HOSE,19.00 mm ID x 1250.00 mm

12mm ID x 1250mm

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

5

KHJ16290

ELBOW

ASSY, Incl 6, 7

2шт.

6

152211A1

O-RING

2шт.

7

NSS

NOT SOLD SEPARAT

45°Fitting, Incl in 5

2шт.

8

KNJ23100

PLATE

1шт.

9

KNJ23091

HOSE CLAMP

2шт.
