(35.360.AK[03]) - VAR - 461868 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX130D LC (35.360.AK[03]) - VAR - 461868 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

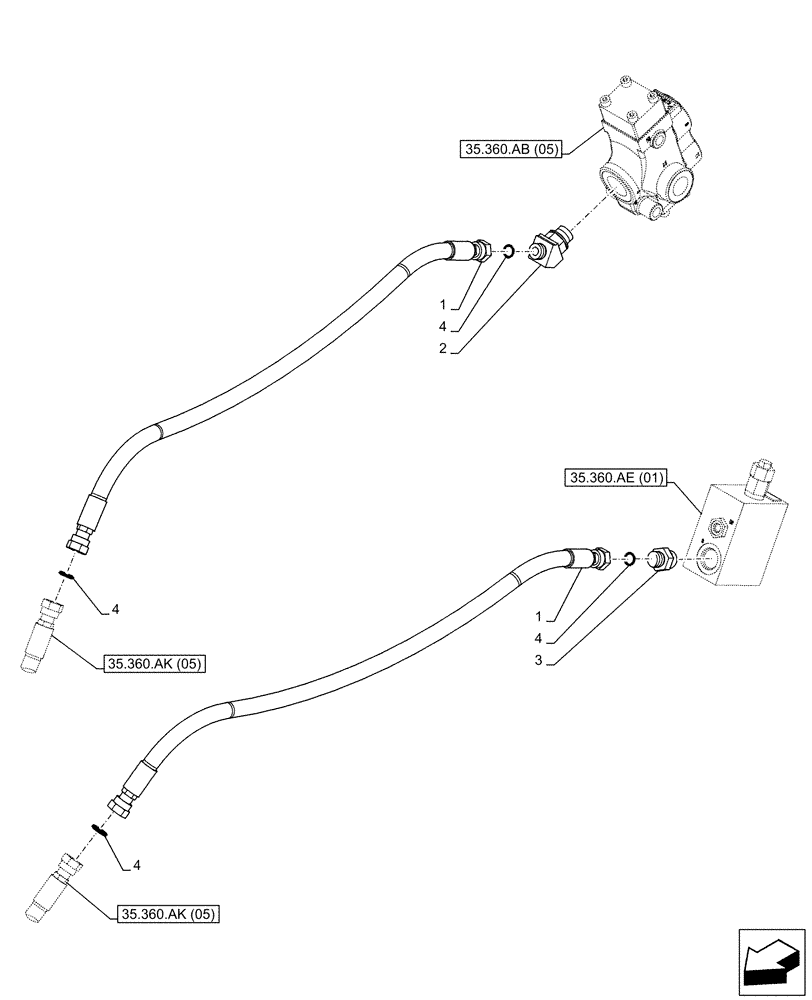

Схема запчастей Case CX130D LC - (35.360.AK[03]) - VAR - 461868 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
1
35.360.ak (05)
3
1
35.360.ab (05)
35.360.ak (05)
4
4
4
35.360.ae (01)
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

19mm ID x 1250mm

2шт.

2

KHJ16290

ELBOW

1шт.

3

KHJ1941

FITTING

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.
