(35.360.AJ[16]) - VAR - 461868 - SOLENOID VALVE, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX130D LC (35.360.AJ[16]) - VAR - 461868 - SOLENOID VALVE, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

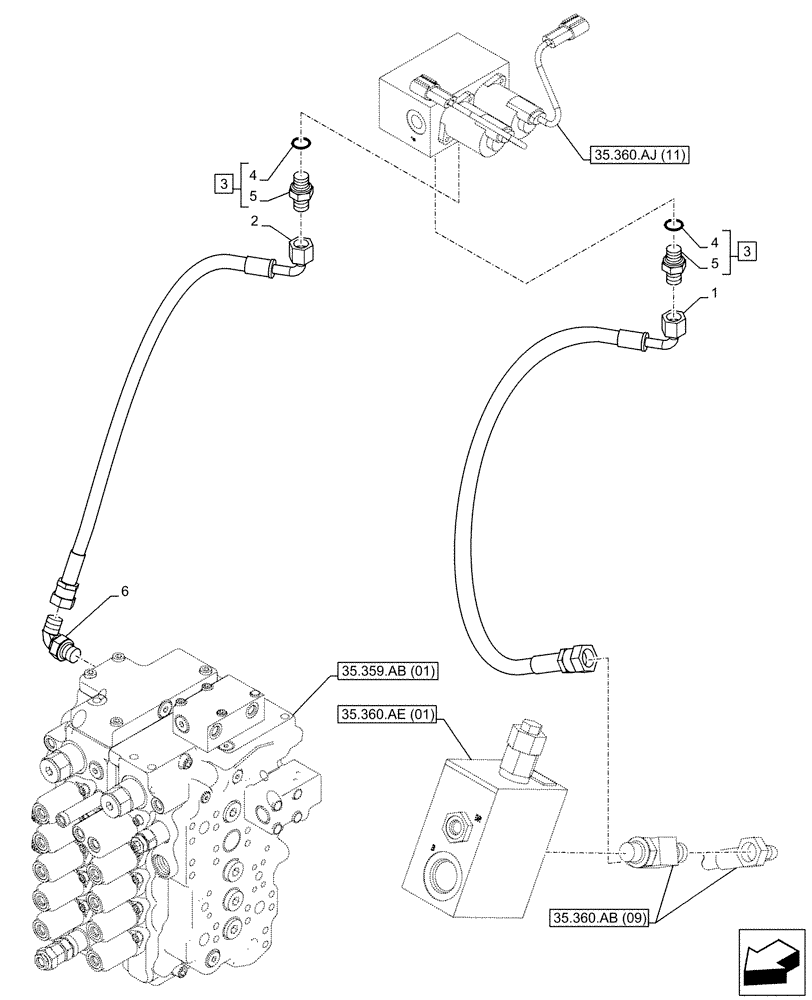

Схема запчастей Case CX130D LC - (35.360.AJ[16]) - VAR - 461868 - SOLENOID VALVE, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
5
35.360.ae (01)
6
3
3
35.359.ab (01)
1
35.360.ab (09)
2
4
5
35.360.aj (11)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

6mm ID x 3100mm

1шт.

2

KHJ18960

HOSE

6mm ID x 3400mm

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 4, 5

2шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting ,Incl in 3

2шт.

6

KHJ28580

ELBOW

1шт.
