(35.360.AJ[13]) - VAR - 461868, 461869 - SOLENOID VALVE, LINES, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX130D LC (35.360.AJ[13]) - VAR - 461868, 461869 - SOLENOID VALVE, LINES, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

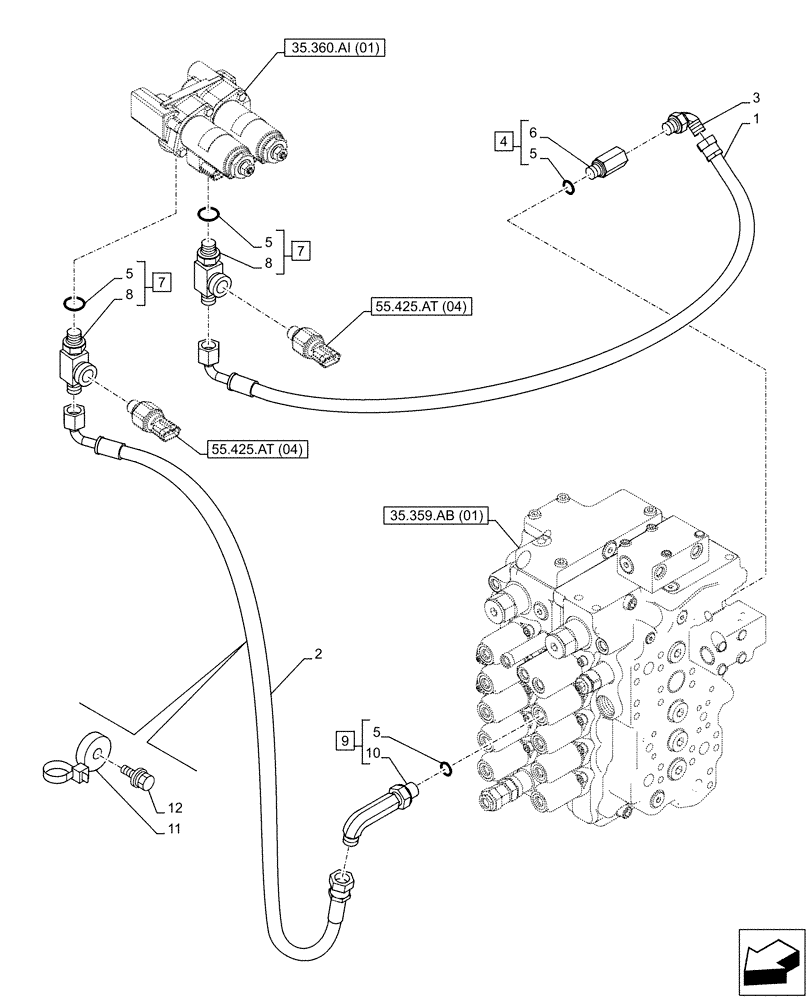

Схема запчастей Case CX130D LC - (35.360.AJ[13]) - VAR - 461868, 461869 - SOLENOID VALVE, LINES, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
55.425.at (04)
9
6
1
5
7
7
5
8
10
7
5
7
8
2
5
3
1
8
6
12
35.360.ai (01)
1
4
5
10
5
8
11
2
1
5
12
35.359.ab (01)
5
55.425.at (04)
4
9
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2171

HOSE

6mm ID x 2650mm

1шт.

2

KHJ2199

HOSE

6mm ID x 2950mm

1шт.

3

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

4

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 5 (Qty 1), 6

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

6

NSS

NOT SOLD SEPARAT

Stud, Incl in 4

1шт.

7

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 5 (Qty 1), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

9

KHJ28810

ELBOW

ASSY, G1/4" x G1/4", Incl 5 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 9

1шт.

11

KHR2584

CLAMP

M8

1шт.

12

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.
