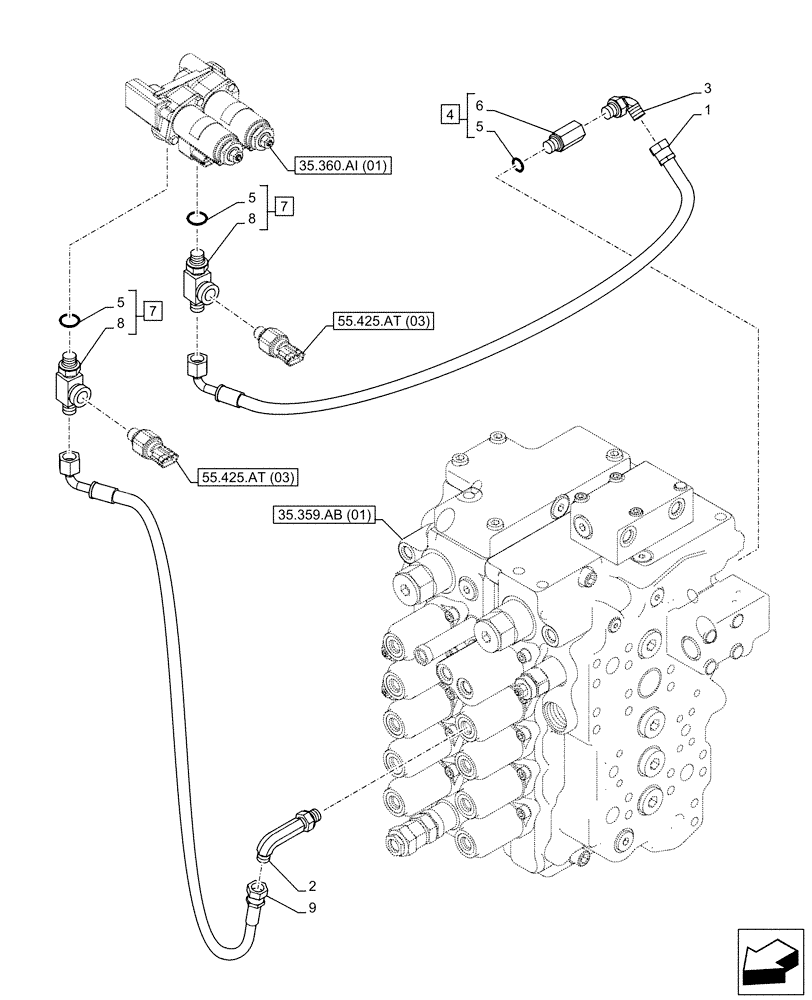

Запчасти Case CX130D LC (35.360.AJ[09]) - VAR - 461871 - HAMMER, SHEARS, SOLENOID VALVE, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ2171

HOSE

6mm ID x 2650mm

1шт.

2

KHJ2199

HOSE

6mm ID x 2950mm

1шт.

3

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

4

162525A1

STUD

ASSY, Incl 5 (Qty 1), 6

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

167666A1

FITTING

ASSY, Incl 5 (Qty 1), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

9

KHJ28810

ELBOW

G1/4" x G1/4"

1шт.
