(35.360.AJ[05]) - VAR - 461871 - HAMMER, SHEARS, SOLENOID VALVE, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX130D LC (35.360.AJ[05]) - VAR - 461871 - HAMMER, SHEARS, SOLENOID VALVE, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

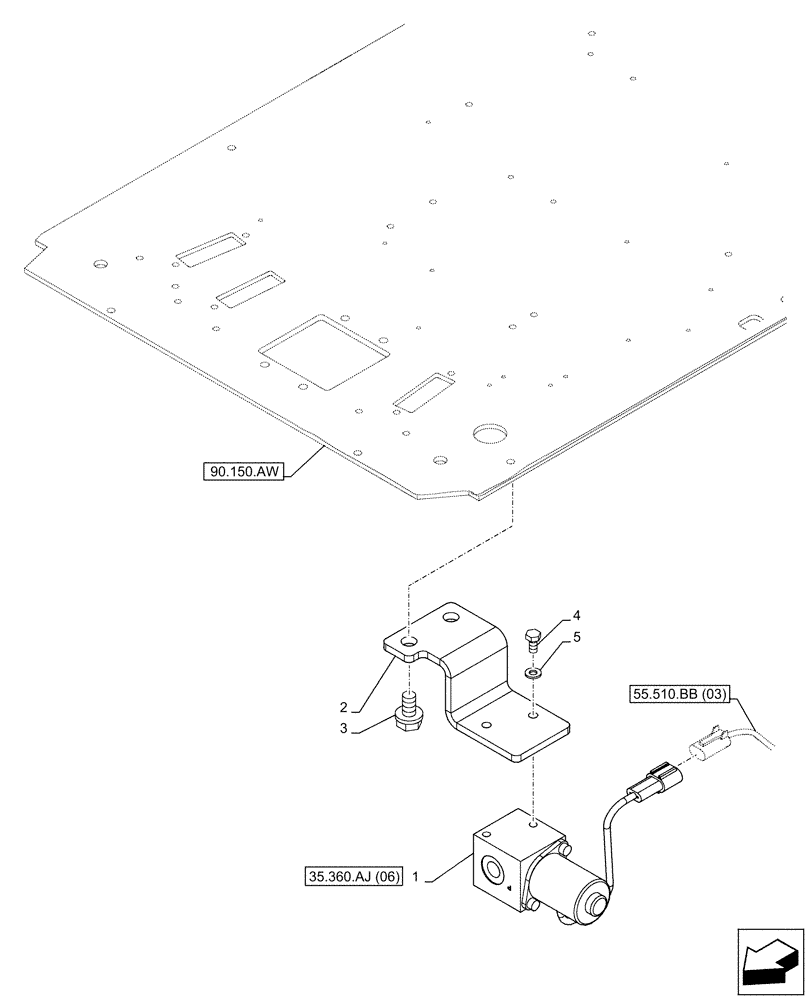

Схема запчастей Case CX130D LC - (35.360.AJ[05]) - VAR - 461871 - HAMMER, SHEARS, SOLENOID VALVE, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
55.510.bb (03)
3
4
2
1
35.360.aj (06)
90.150.aw
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162538A1

VALVE

ASSY

1шт.

2

KHJ30520

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

2шт.

4

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

5

183-106VR

SPRING WASHER

M6

2шт.
