(35.360.AJ[02]) - VAR - 461865 - HAMMER CIRCUIT, SOLENOID VALVE, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX130D LC (35.360.AJ[02]) - VAR - 461865 - HAMMER CIRCUIT, SOLENOID VALVE, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

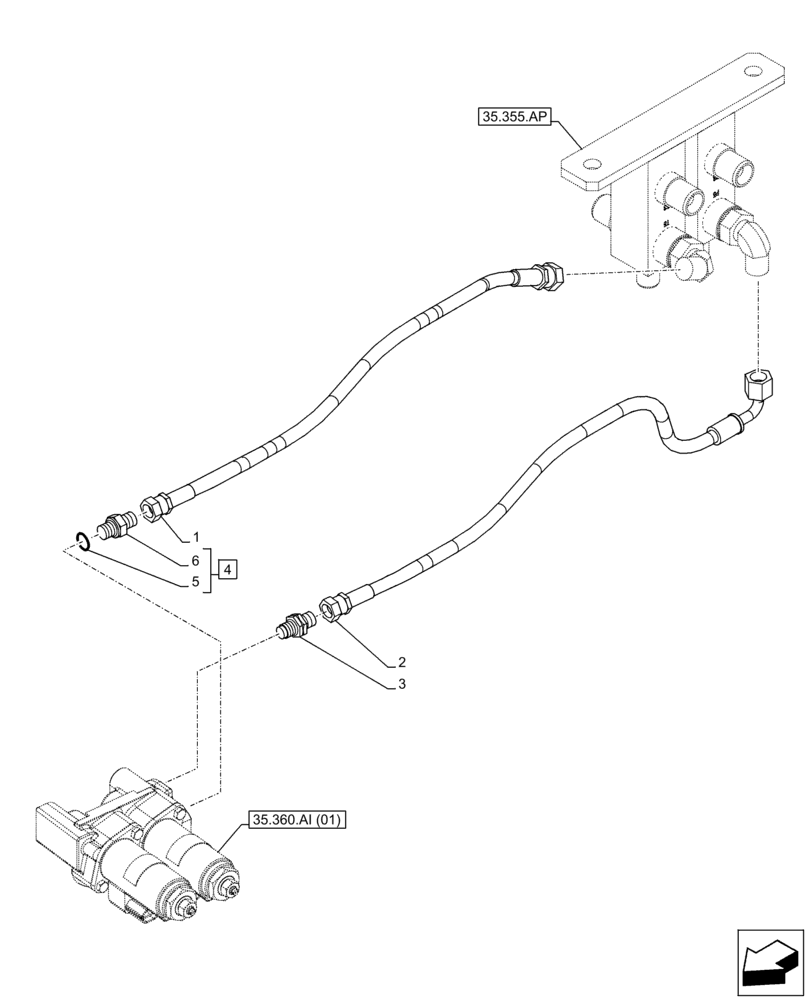

Схема запчастей Case CX130D LC - (35.360.AJ[02]) - VAR - 461865 - HAMMER CIRCUIT, SOLENOID VALVE, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
3
6
2
4
1
5
35.360.ai (01)
35.355.ap
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2051

HOSE

6mm ID x 1050mm

1шт.

2

KHJ2092

HOSE

6mm ID x 1100mm

1шт.

3

161841A1

HYD CONNECTOR

G1/4" x G1/4"

1шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 5, 6

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.
