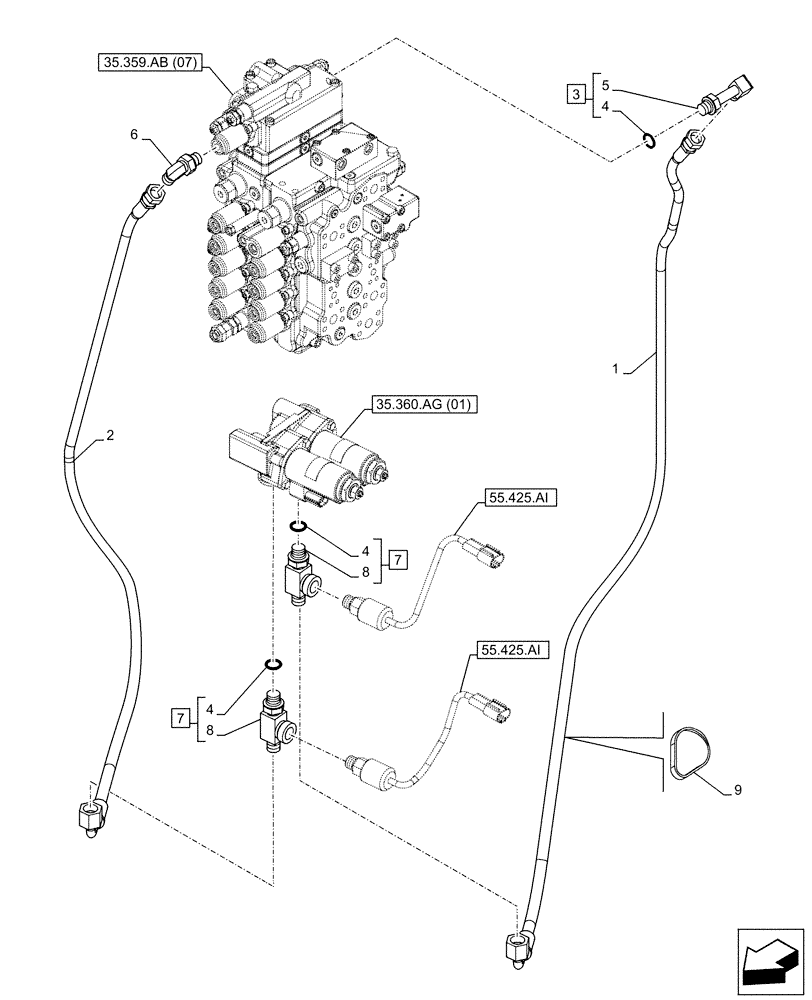

Запчасти Case CX130D LC (35.360.AF[03]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ13660

HYDRAULIC HOSE

6mm ID x 3300mm

1шт.

2

KHJ25060

HOSE ASSY.

6mm ID x 3250mm

1шт.

3

KHJ1178

ELBOW

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 5

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

6

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

7

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 4 (Qty 1), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

9

150496A1

MOUNTING CLIP

250mm

3шт.
