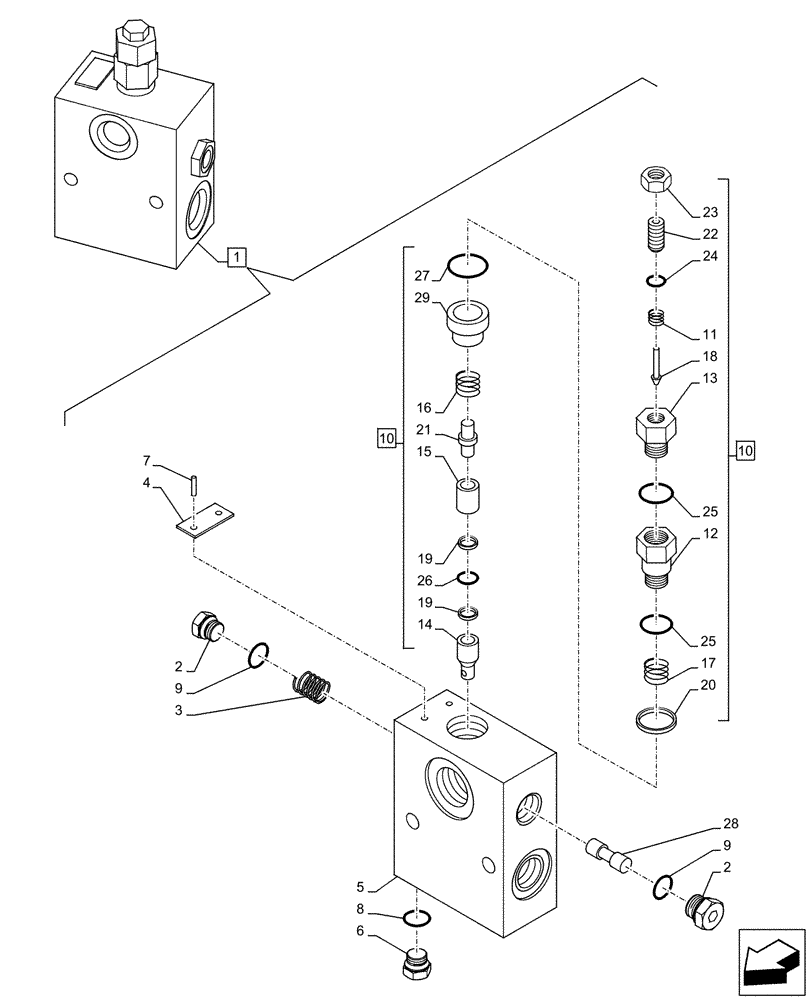

Запчасти Case CX130D LC (35.360.AE[02]) - VAR - 461868 - SELECTOR VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KHJ10410

VALVE SECTION

ASSY, Incl 2 - 29

1шт.

2

LK005490

PLUG

2шт.

3

LG005790

COMPRESSION SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

Nameplate, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

6

155515A1

PLUG

1шт.

7

LA00769

RIVET

2шт.

8

154475A1

O-RING

1шт.

9

154491A1

O-RING

2шт.

10

KHJ15850

VALVE PRESSURE RELIE

ASSY, Incl 11 - 27, 29

1шт.

11

NSS

NOT SOLD SEPARAT

Spring , Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Adapter, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Poppet, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Spring , Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Needle, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Ring Back-up, Incl in 1

2шт.

20

NSS

NOT SOLD SEPARAT

Ring Back-up, Incl in 1

2шт.

21

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

23

165150A1

NUT

1шт.

24

154463A1

O-RING

1шт.

25

155223A1

O-RING

2шт.

26

154457A1

O-RING

1шт.

27

154481A1

O-RING

1шт.

28

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Holder, Incl in 1

1шт.
