(35.360.AE[01]) - VAR - 461868 - SELECTOR VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX130D LC (35.360.AE[01]) - VAR - 461868 - SELECTOR VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

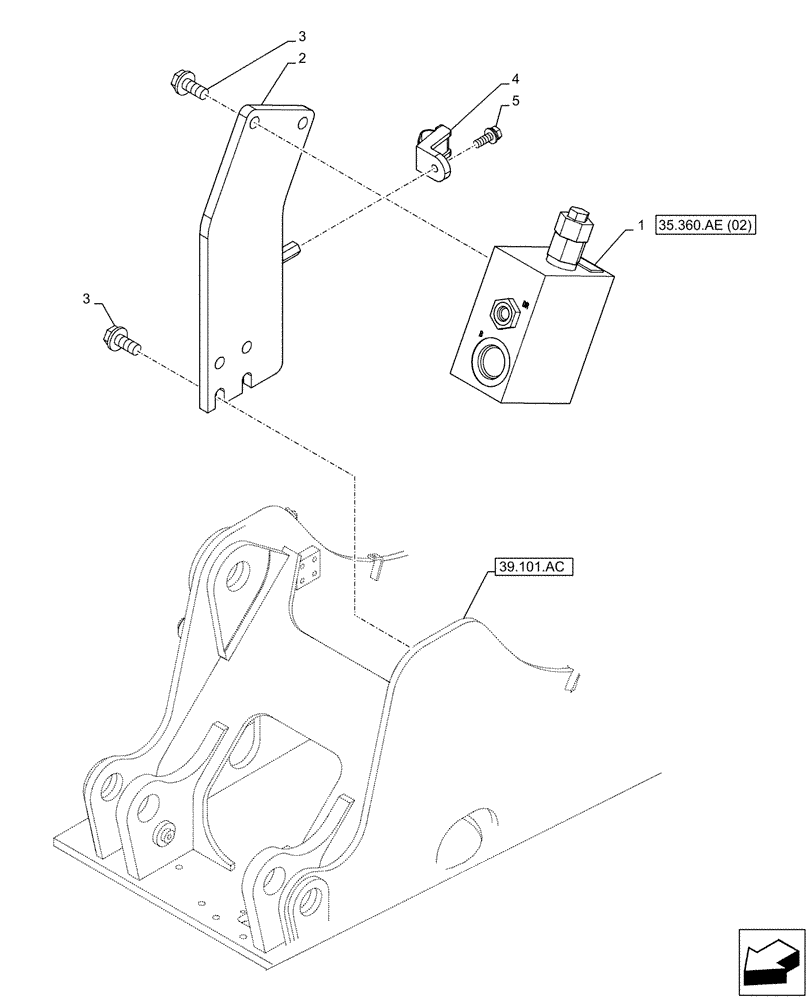

Схема запчастей Case CX130D LC - (35.360.AE[01]) - VAR - 461868 - SELECTOR VALVE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.ae (02)
4
39.101.ac
3
2
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ10410

VALVE SECTION

ASSY

1шт.

2

KNJ14840

BRACKET

1шт.

3

166352A1

BOLT

M12 x 30mm

6шт.

4

KHR2581

CLAMP

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.
