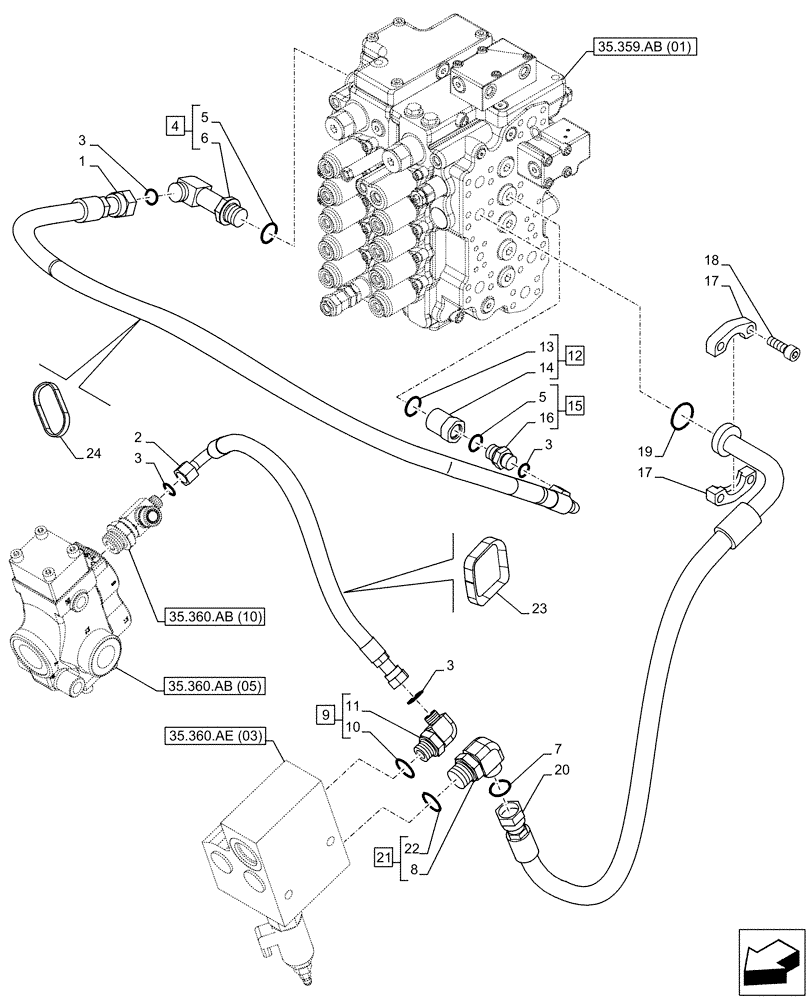

Запчасти Case CX130D LC (35.360.AB[12]) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KNJ12880

HOSE ASSY.,12.70 mm ID x 930.00 mm

12mm ID x 930mm

1шт.

2

KNJ23110

HYDRAULIC HOSE

12mm ID x 620mm

1шт.

3

KHJ2587

O-RING

4шт.

4

KHJ14690

ELBOW

ASSY, Incl 5 (Qty 1), 6

1шт.

5

150539A1

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 4

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 21

1шт.

9

KHJ34850

ELBOW

ASSY, Incl 10, 11

1шт.

10

150542A1

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 9

1шт.

12

KHJ14720

CHECK VALVE

ASSY, Incl 13, 14

1шт.

13

163286A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

15

KHJ14710

ADAPTER

ASSY, Incl 5 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

17

153458A1

FLANGE

G3/4"

2шт.

18

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

19

161097A1

O-RING

1шт.

20

KNJ23070

HYDRAULIC HOSE

15mm ID x 410mm

1шт.

21

KHJ14700

ELBOW

ASSY, Incl 8, 22

1шт.

22

152211A1

O-RING

1шт.

23

150071A1

MOUNTING CLIP

380mm

1шт.

24

KHJ2022

HOSE CLAMP

1шт.
