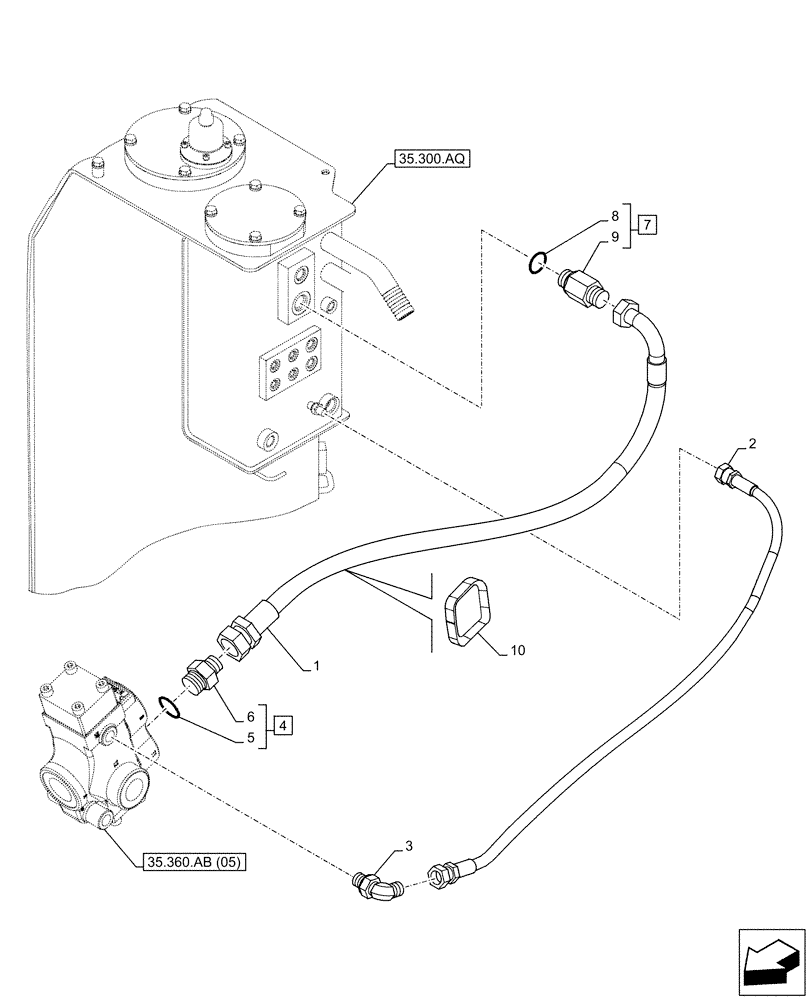

Запчасти Case CX130D LC (35.360.AB[11]) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KRJ32660

HYDRAULIC HOSE

19mm ID x 620mm

1шт.

2

KHJ1111

HYDRAULIC HOSE,6.35 mm ID x 650.00 mm

650mm

1шт.

3

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

4

169040A1

ADAPTER

ASSY, G1" x G3/4", Incl 5, 6

1шт.

5

152211A1

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

KAJ2917

ADAPTER

ASSY, Incl 8, 9

1шт.

8

150542A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

10

150496A1

MOUNTING CLIP

250mm

1шт.
