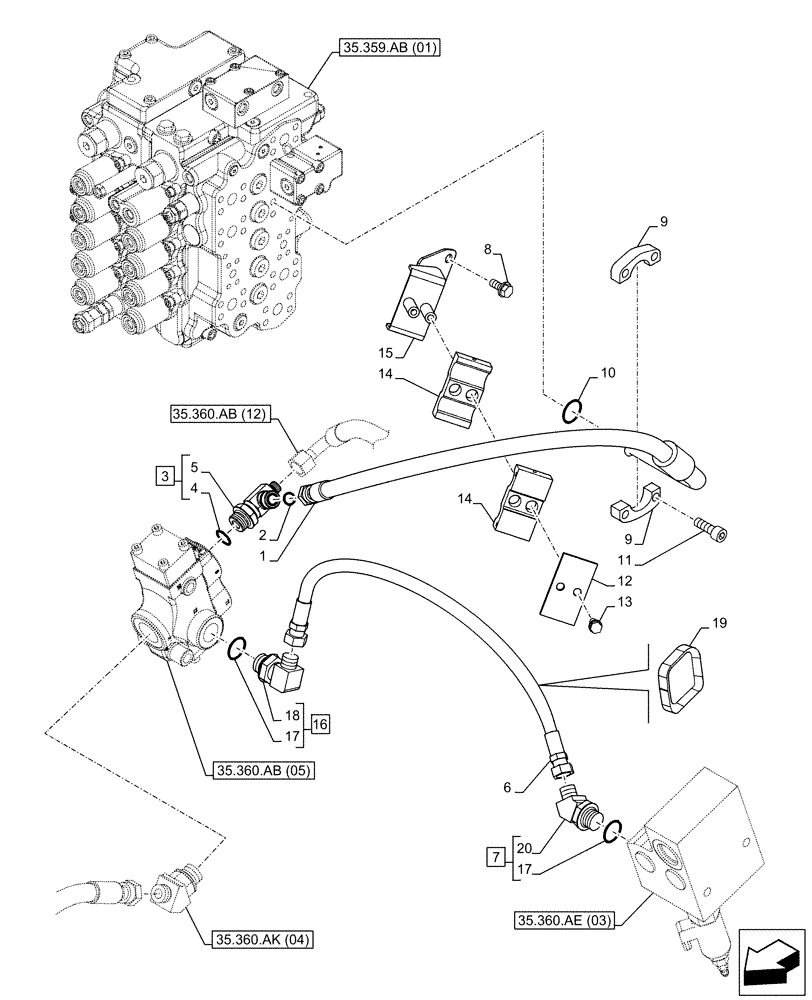

Запчасти Case CX130D LC (35.360.AB[10]) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KNJ23120

HYDRAULIC HOSE

15mm ID x 1020mm

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

3

152211A1

O-RING

ASSY, Incl 4, 5

1шт.

4

KHJ2587

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

6

KHJ34870

HYDRAULIC HOSE

580mm

1шт.

7

KHJ2243

ELBOW

ASSY, G3/4" x G1/2", Incl 17 (Qty 1), 20

1шт.

8

166352A1

BOLT

M12 x 30mm

2шт.

9

153458A1

FLANGE

G3/4"

2шт.

10

161097A1

O-RING

1шт.

11

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

4шт.

12

KRH10210

PLATE

1шт.

13

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30mm

2шт.

14

KLJ10730

COLLAR CLAMP

2шт.

15

KNJ18430

BRACKET

1шт.

16

157936A1

ELBOW

ASSY, G3/4" x G1/2", Incl 17(Qty 1), 18

1шт.

17

150542A1

O-RING

2шт.

18

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 16

1шт.

19

150496A1

MOUNTING CLIP

250mm

1шт.

20

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

1шт.
