(35.360.AB[04]) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX130D LC (35.360.AB[04]) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

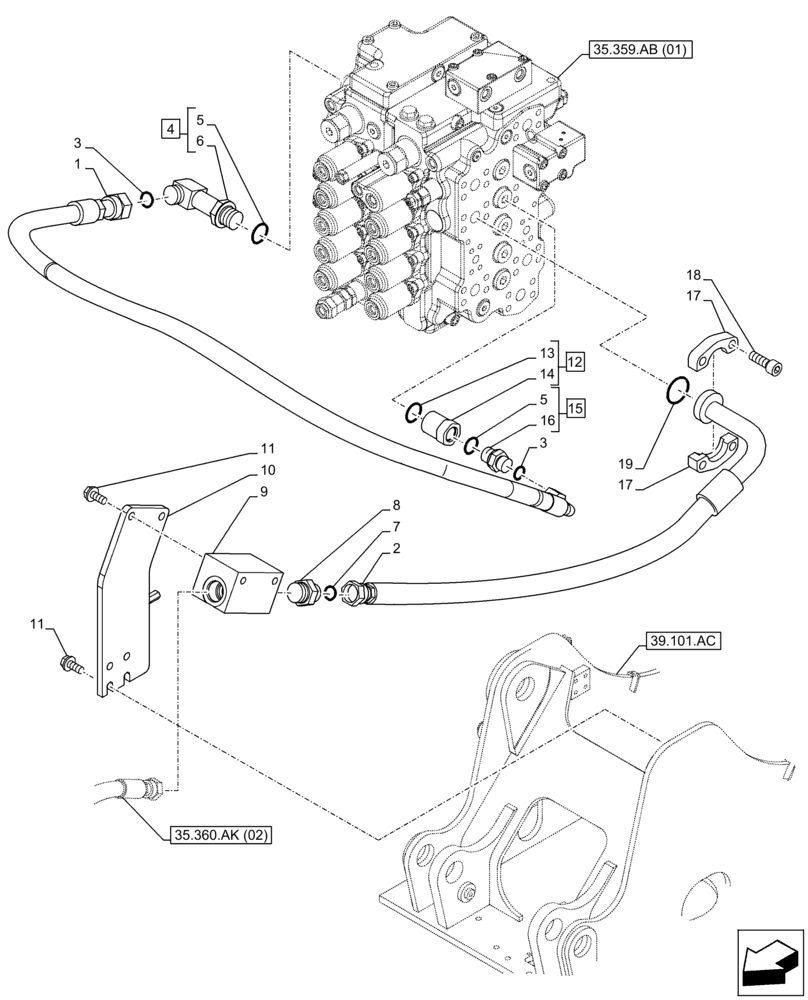

Схема запчастей Case CX130D LC - (35.360.AB[04]) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
11
5
10
3
4
19
8
3
35.360.ak (02)
5
6
18
2
17
16
11
35.359.ab (01)
12
14
13
39.101.ac
15
9
17
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ12880

HOSE ASSY.,12.70 mm ID x 930.00 mm

12mm ID x 930mm

1шт.

2

KNJ12830

HOSE ASSY.

15mm ID x 400mm

1шт.

3

KHJ2587

O-RING

2шт.

4

KHJ14690

ELBOW

ASSY, Incl 5 (Qty 1), 6

1шт.

5

150539A1

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 4

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

KHJ1941

FITTING

1шт.

9

KRJ12170

MANIFOLD VALVE

1шт.

10

KNJ14840

BRACKET

1шт.

11

166352A1

BOLT

M12 x 30mm

6шт.

12

KHJ14720

CHECK VALVE

ASSY, Incl 13, 14

1шт.

13

163286A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

15

KHJ14710

ADAPTER

ASSY, Incl 5 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

153458A1

FLANGE

2шт.

18

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 X 30mm

4шт.

19

161097A1

O-RING

1шт.
