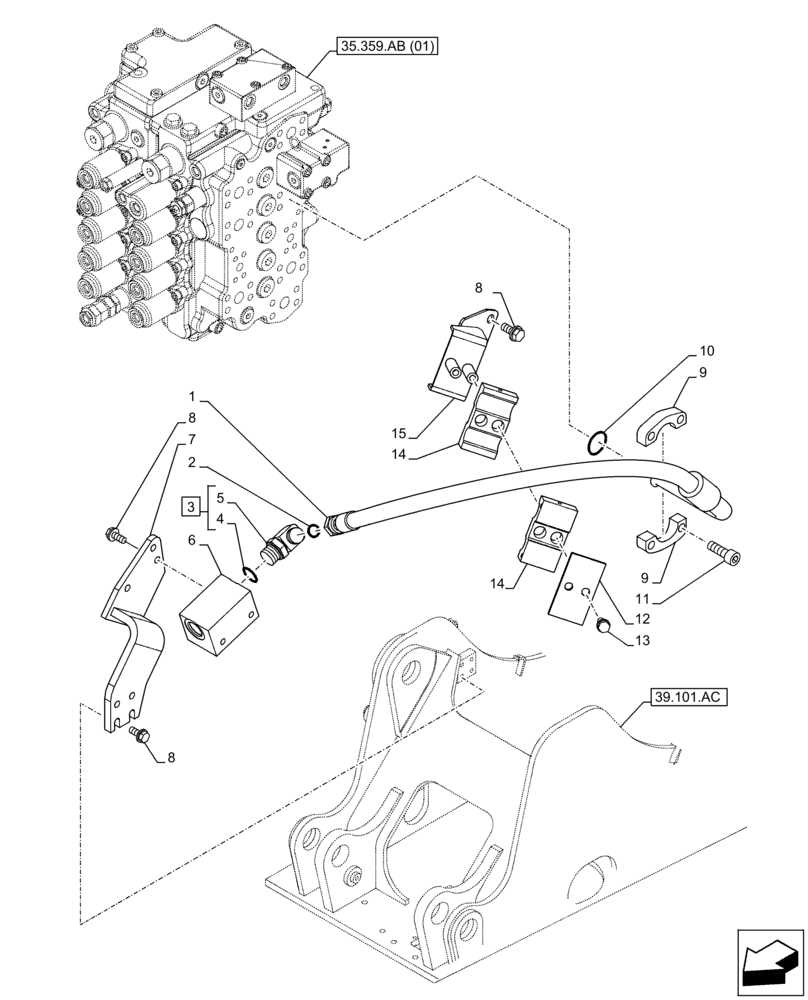

Запчасти Case CX130D LC (35.360.AB[03]) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KNJ15050

HYDRAULIC HOSE

15mm ID x 1040mm

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

3

KHJ14700

ELBOW

ASSY, Incl 4, 5

1шт.

4

152211A1

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 3

1шт.

6

KRJ12170

MANIFOLD VALVE

1шт.

7

KNJ14830

BRACKET

1шт.

8

166352A1

BOLT

M12 x 30mm

6шт.

9

153458A1

FLANGE

G3/4"

2шт.

10

161097A1

O-RING

1шт.

11

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

12

KRH10210

PLATE

1шт.

13

166347A1

BOLT,Sems, M10 x 30mm

2шт.

14

KLJ10730

COLLAR CLAMP

2шт.

15

KNJ18430

BRACKET

1шт.
