(35.359.AY[04]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS

Запчасти Case CX130D LC (35.359.AY[04]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

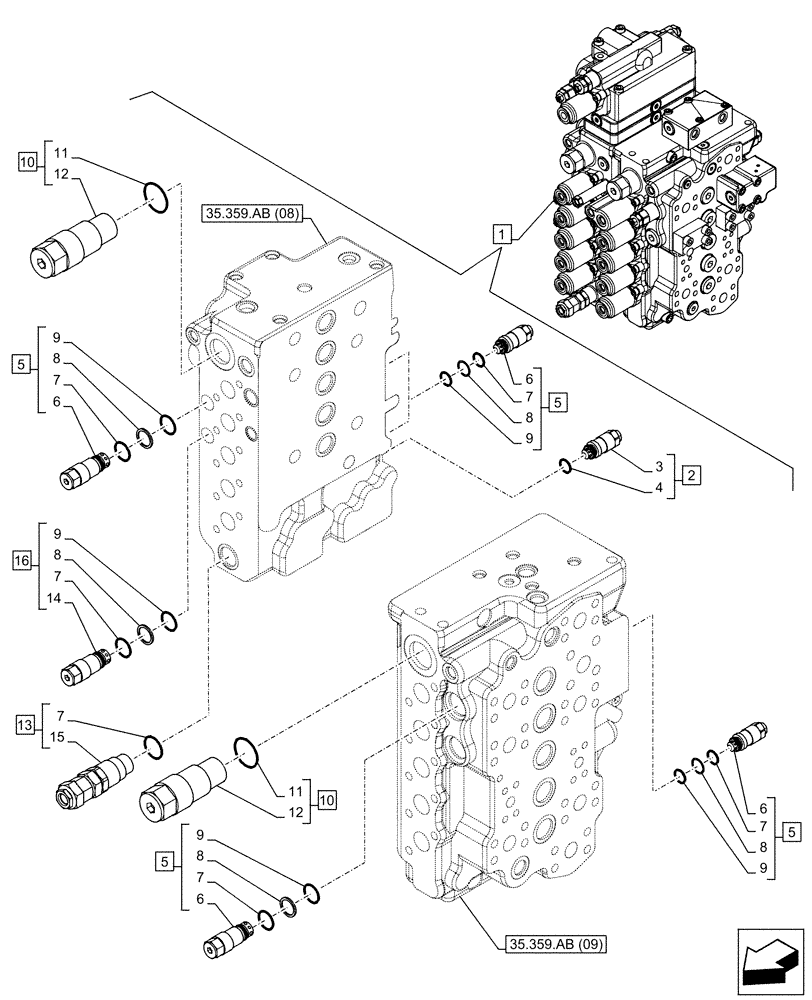

Схема запчастей Case CX130D LC - (35.359.AY[04]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.ab (09)
5
8
16
7
12
9
5
1
10
14
2
6
13
4
7
15
5
10
3
11
5
8
9
6
8
7
8
9
7
7
7
8
6
9
11
6
12
9
35.359.ab (08)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ21950

CONTROL VALVE

ASSY, Incl 2 - 16

1шт.

See also Figure 35.359.AB(07), 35.359.AB(08), 35.359.AB(09), 35.359.AB(10), 35.359.AB(11), 35.359.AB(12), 35.359.AB(13), 35.359.AY(05)

1шт.

2

LJ023140

VALVE

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

4

LE025890

O-RING

1шт.

5

LJ016730

VALVE PRESSURE RELIE

ASSY, Incl 6 - 9 (Qty 1)

5шт.

6

NSS

NOT SOLD SEPARAT

Valve, Incl in 5

5шт.

7

LE026690

O-RING

6шт.

8

LE026610

RING

5шт.

9

LE026720

O-RING

5шт.

10

LJ022980

VALVE

ASSY, Incl 11, 12

2шт.

11

LE026710

O-RING

2шт.

12

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

2шт.

13

LJ00800

VALVE, PRESSURE RELI

ASSY, Incl 7 (Qty 1), 15

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 16

1шт.

15

NSS

NOT SOLD SEPARAT

Valve, Incl in 13

1шт.

16

LJ017180

VALVE PRESSURE RELIE

ASSY, Incl 7 - 9 (Qty 1), 14

1шт.
