(35.359.AB[12]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS

Запчасти Case CX130D LC (35.359.AB[12]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

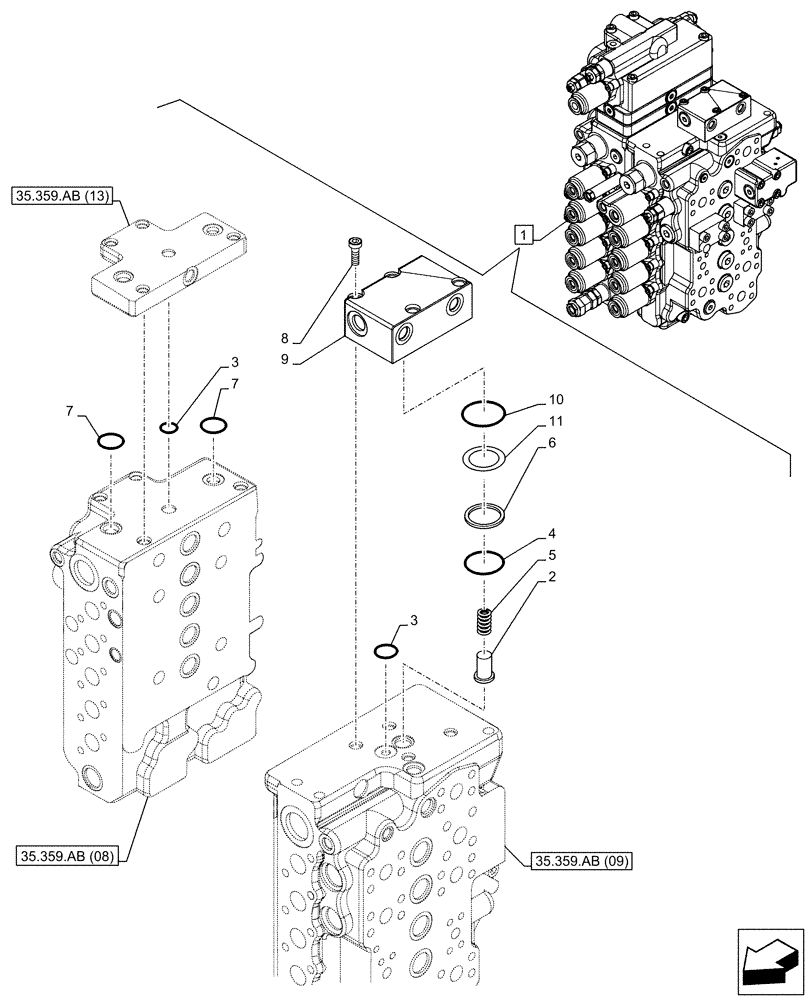

Схема запчастей Case CX130D LC - (35.359.AB[12]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.ab (09)
6
2
9
7
5
1
8
3
10
7
11
4
3
35.359.ab (13)
35.359.ab (08)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ21950

CONTROL VALVE

ASSY, Incl 2 - 11

1шт.

See also Figure 35.359.AB(07), 35.359.AB(08), 35.359.AB(09), 35.359.AB(10), 35.359.AB(11), 35.359.AB(13), 35.359.AY(04), 35.359.AY(05)

1шт.

2

LPC0125

CHECK VALVE

1шт.

3

LE026670

O-RING

5шт.

4

LE026650

O-RING

1шт.

5

LSC0204

SPRING

1шт.

6

LE026590

RING

1шт.

7

LE026710

O-RING

2шт.

8

LA017300

BOLT

4шт.

9

LJ022990

MANIFOLD

1шт.

10

LE026680

O-RING

1шт.

11

LR00556

VALVE SEAT

1шт.
