(35.359.AB[07]) - VAR - 461863 - CONTROL VALVE, MOUNTING, BRACKET, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX130D LC (35.359.AB[07]) - VAR - 461863 - CONTROL VALVE, MOUNTING, BRACKET, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

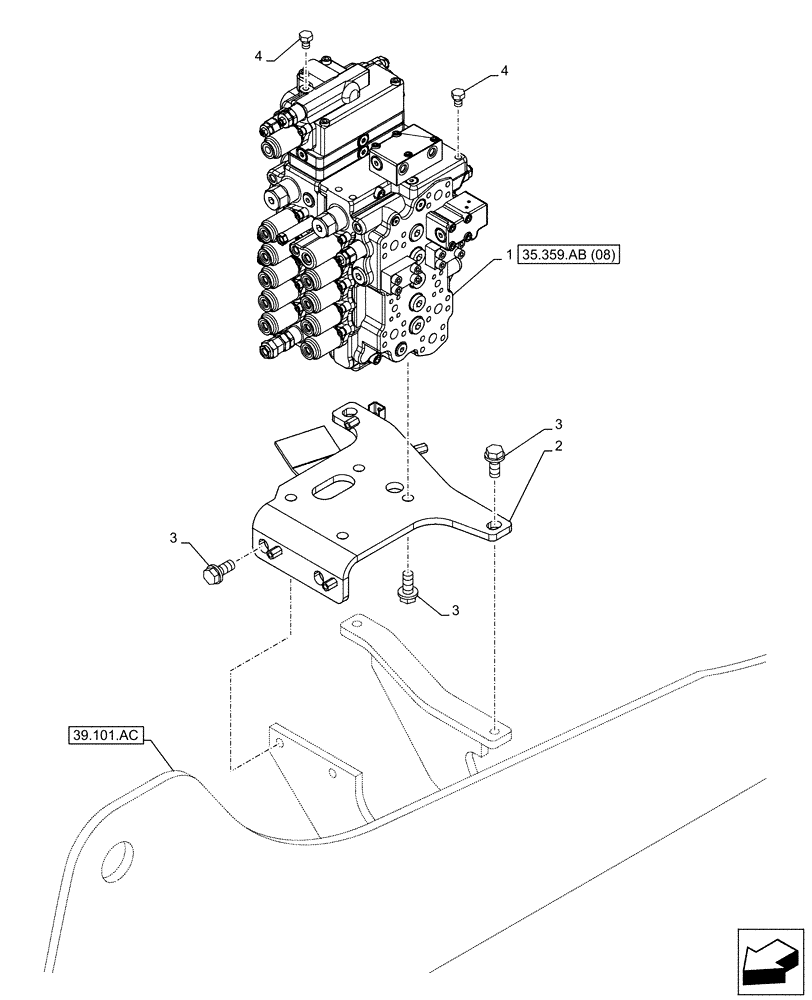

Схема запчастей Case CX130D LC - (35.359.AB[07]) - VAR - 461863 - CONTROL VALVE, MOUNTING, BRACKET, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.359.ab (08)
3
3
4
39.101.ac
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ21950

CONTROL VALVE

ASSY

1шт.

35.359.AB(08), 35.359.AB(09), 35.359.AB(10), 35.359.AB(11), 35.359.AB(12), 35.359.AB(13), 35.359.AY(04), 35.359.AB(05)

1шт.

2

KNJ16710

BRACKET

1шт.

3

166373A1

BOLT,Sems, M16 x 40mm

8шт.

4

102R012Y016R

BOLT

M12 x 16mm

2шт.
