(35.359.AB[01]) - CONTROL VALVE, MOUNTING, BRACKET

Запчасти Case CX130D LC (35.359.AB[01]) - CONTROL VALVE, MOUNTING, BRACKET (35) - HYDRAULIC SYSTEMS

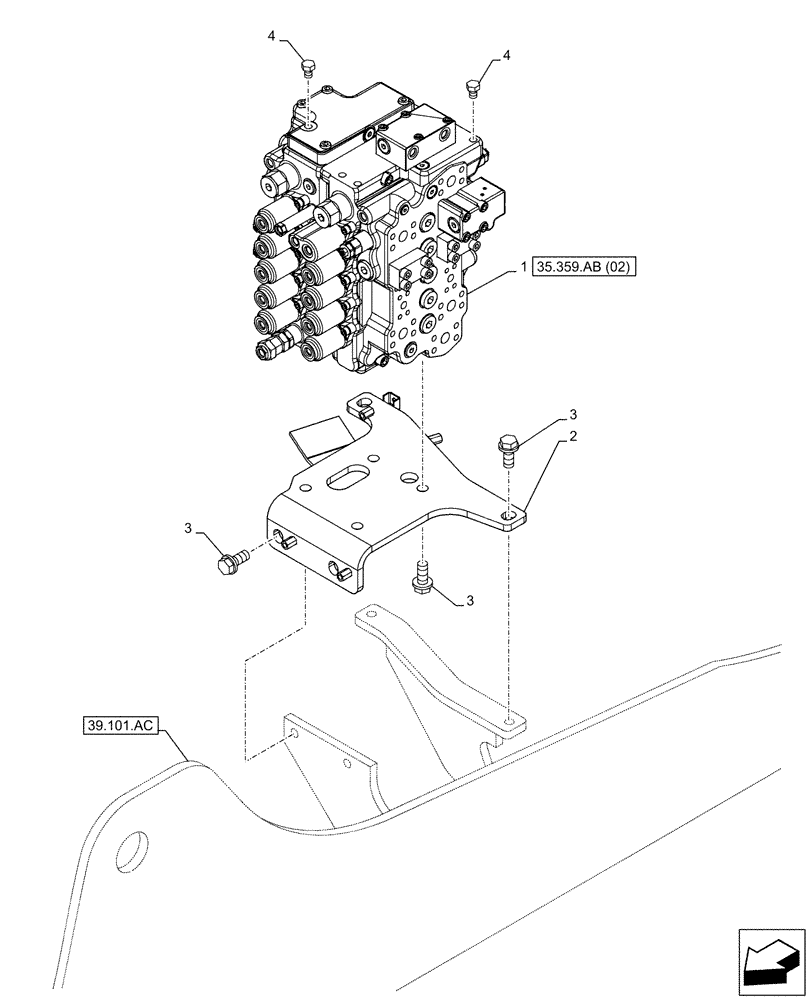

Схема запчастей Case CX130D LC - (35.359.AB[01]) - CONTROL VALVE, MOUNTING, BRACKET (35) - HYDRAULIC SYSTEMS
3
2
1
3
39.101.ac
4
35.359.ab (02)
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ21940

CONTROL VALVE

1шт.

See also Figure 35.359.AB (02), 35.359.AB (03), 35.359.AB (04), 35.359.AB (05), 35.359.AB (06), 35.359.AY (03)

1шт.

2

KNJ16710

BRACKET

1шт.

3

166373A1

BOLT,Sems, M16 x 40mm

8шт.

4

102R012Y016R

BOLT

M12 x 16mm

2шт.
