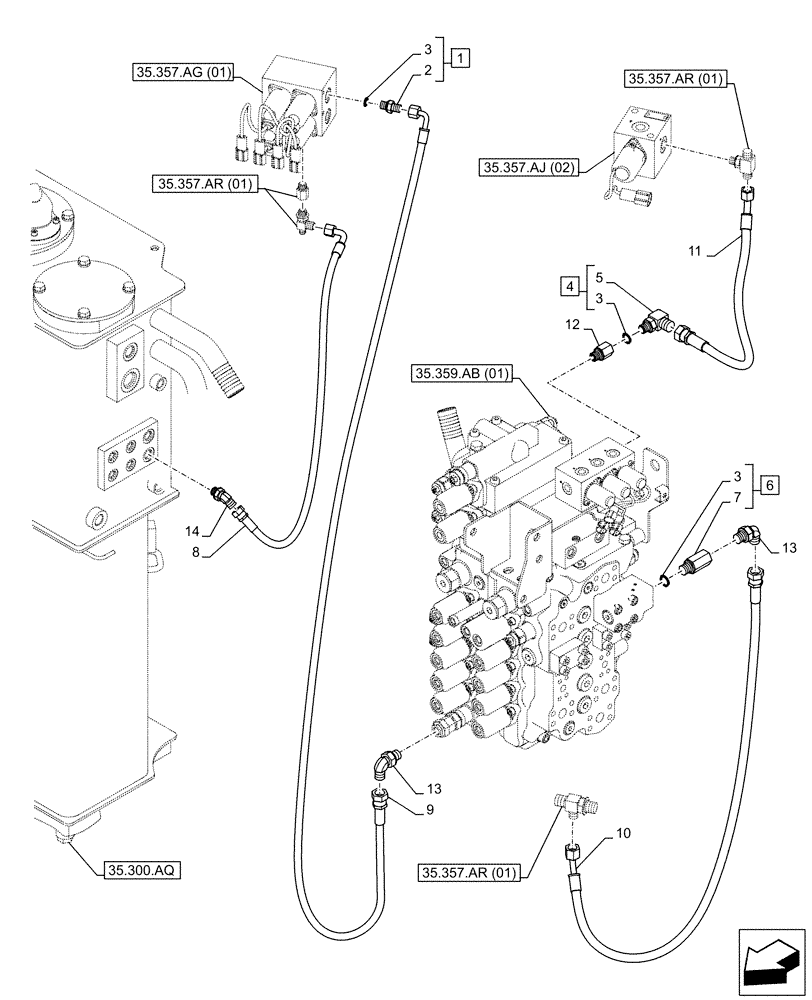

Запчасти Case CX130D LC (35.357.AR[02]) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

4

KHJ0918

ADAPTER

ASSY, Incl 5, 3 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

6

162525A1

STUD

ASSY, Incl 7, 3 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

KHJ29420

HOSE

9mm ID x 2000mm

1шт.

9

KHJ27990

HOSE

6mm ID x 1850mm

1шт.

10

KHJ32150

HOSE

6mm ID x 2000mm

1шт.

11

KHJ2370

HOSE

9mm ID x 2550mm

1шт.

12

KHJ13640

STUD

1шт.

13

KHJ28580

ELBOW

2шт.

14

KHJ28640

ELBOW

1шт.
