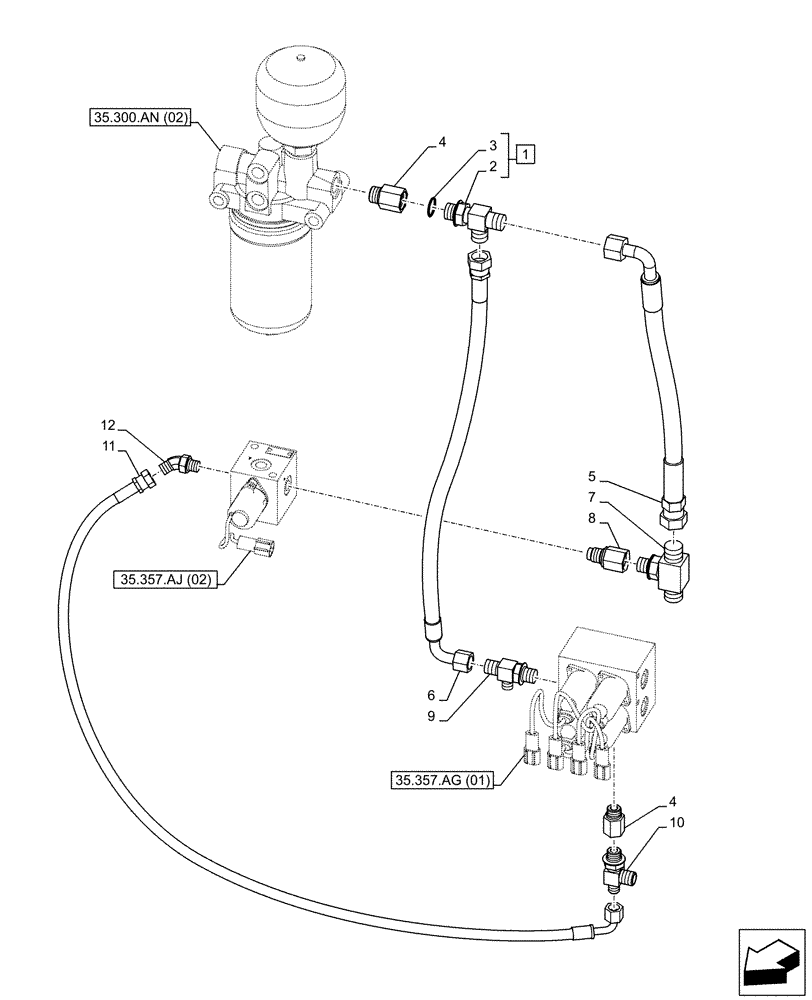

Запчасти Case CX130D LC (35.357.AR[01]) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, G3/8", Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 1

1шт.

3

150031A1

O-RING,10mm ID x 24mm OD

1шт.

4

KHJ13790

STUD

2шт.

5

KHJ34450

HOSE

9mm ID x 290mm

1шт.

6

KHJ2169

HOSE

9mm ID x 450mm

1шт.

7

KMJ2291

TEE

1шт.

8

KHJ25100

STUD

G1/4"

1шт.

9

163422A1

TEE

G3/8" x G3/8" x G1/4"

1шт.

10

KHJ13900

TEE

1шт.

11

KHJ2342

HOSE

6mm ID x 380mm

1шт.

12

KHJ28630

ELBOW

G1/4" x G1/4"

1шт.
