(35.357.AQ[02]) - STD + VAR - 461558 - PILOT VALVE, DRAIN LINE, CONTROL PATTERN SELECTION

Запчасти Case CX130D LC (35.357.AQ[02]) - STD + VAR - 461558 - PILOT VALVE, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

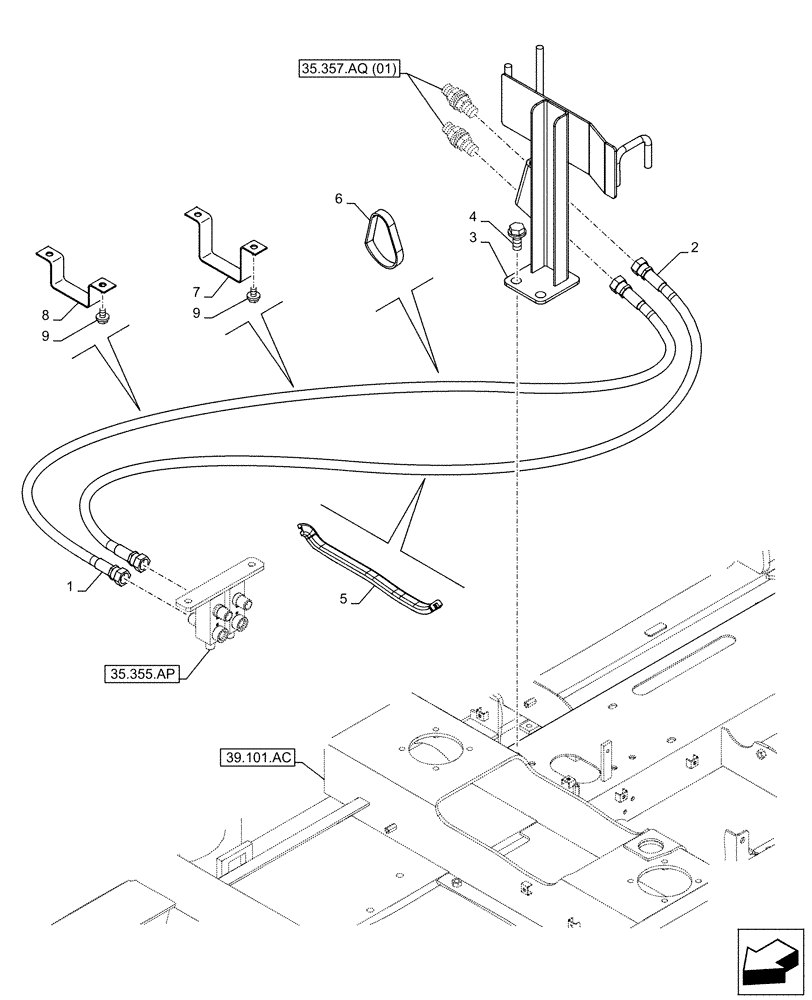

Схема запчастей Case CX130D LC - (35.357.AQ[02]) - STD + VAR - 461558 - PILOT VALVE, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
39.101.ac
6
35.355.ap
3
7
2
5
9
8
1
4
35.357.aq (01)
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ13810

HYDRAULIC HOSE,9.52 mm ID x 1150.00 mm

9mm ID x 1150mm

1шт.

2

KHJ14330

HYDRAULIC HOSE

9mm ID x 1100mm

1шт.

3

KNJ22060

BRACKET

1шт.

4

166352A1

BOLT

M12 x 30mm

2шт.

5

MFJ51530

SEAL PROTECTION

450mm

2шт.

6

150498A1

MOUNTING CLIP

300mm

1шт.

7

KHJ24020

CLAMP

1шт.

8

KHJ13770

COLLAR

1шт.

9

166345A1

BOLT

M8 x 16mm

4шт.
