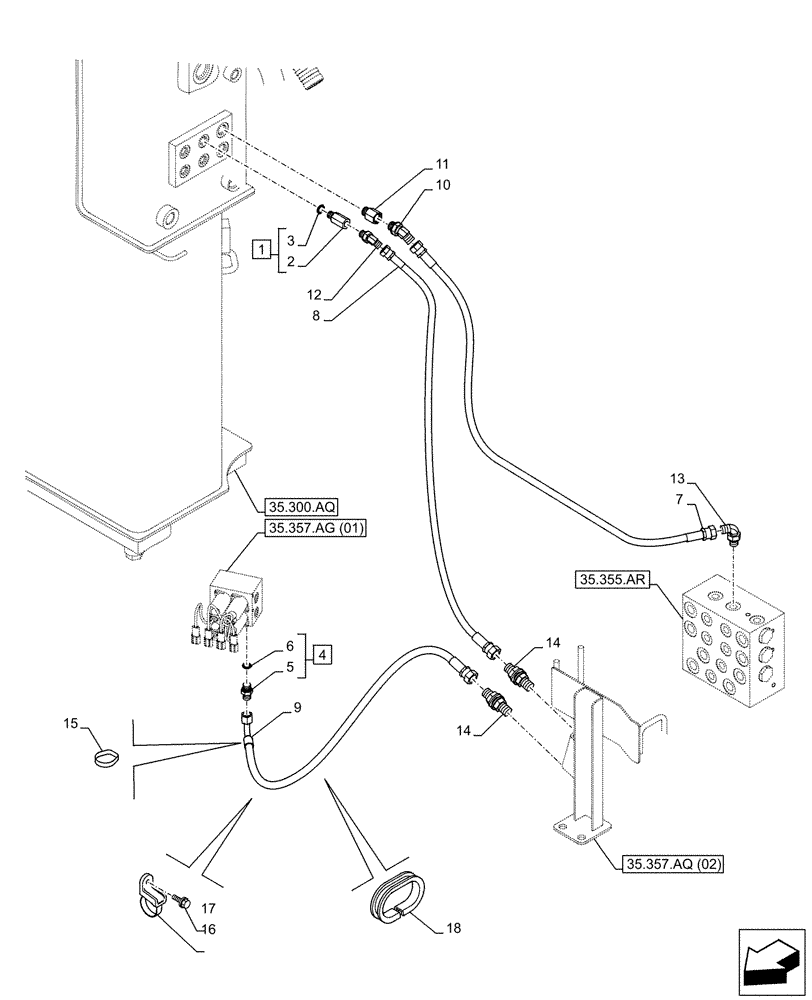

Запчасти Case CX130D LC (35.357.AQ[01]) - PILOT VALVE, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

162525A1

STUD

ASSY, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

150031A1

O-RING,10mm ID x 24mm OD

1шт.

7

KHJ2255

HOSE

6mm ID x 2100mm

1шт.

8

KHJ24350

HOSE

9mm ID x 1700mm

1шт.

9

KHJ14110

HYDRAULIC HOSE

9mm ID x 2150mm

1шт.

10

KHJ28640

ELBOW

1шт.

11

KHJ13790

STUD

1шт.

12

KHJ28630

ELBOW

1шт.

13

KHJ28580

ELBOW

1шт.

14

162826A1

ADAPTER

2шт.

15

150071A1

MOUNTING CLIP

6шт.

16

KHR2581

CLAMP

3шт.

17

KHJ1215

BOLT,Spcl

3шт.

18

KAJ5089

GROMMET

1шт.
