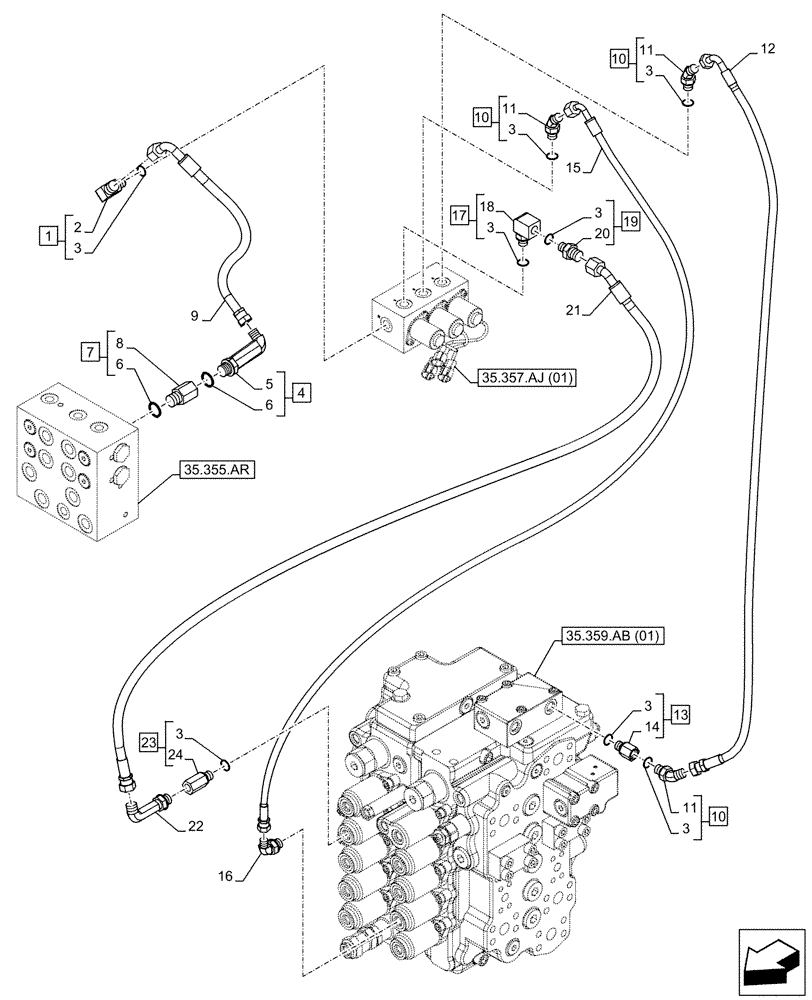

Запчасти Case CX130D LC (35.357.AO[02]) - STD + VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KHJ0918

ADAPTER

ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

4

KHJ28820

ELBOW

ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

6

150031A1

O-RING,10mm ID x 24mm OD

2шт.

7

KHJ13790

STUD

ASSY, Incl 8, 6 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

KHJ30840

HOSE

9mm ID x 1550mm

1шт.

10

KHJ28630

ELBOW

ASSY, Incl 11, 3 (Qty 1)

3шт.

11

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 10

3шт.

12

168807A1

HOSE ASSY.

06mm ID x 260mm

1шт.

13

KHJ13640

STUD

ASSY, Incl 14, 3 (Qty 1)

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 13

1шт.

15

KHJ2092

HOSE

6mm ID x 1100mm

1шт.

16

KHJ28580

ELBOW

1шт.

17

KHJ0719

ELBOW

ASSY, Incl 18, 3 (Qty 1)

1шт.

18

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 17

1шт.

19

152747A1

ADAPTER

ASSY, Incl 20, 3 (Qty 1)

1шт.

20

NSS

NOT SOLD SEPARAT

Fitting, Incl in 19

1шт.

21

KHJ35070

HOSE

1шт.

22

KHJ31600

ELBOW

1шт.

23

162525A1

STUD

ASSY, Incl 24, 3 (Qty 1)

1шт.

24

NSS

NOT SOLD SEPARAT

Fitting, Incl in 23

1шт.
